MRTFA · Western blot design guide
MRTFA Western Blot Planning Guide
Plan a MRTFA Western blot around the catalog-observed 98.9 kDa band, image-backed A32468-2 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
MRTFA Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 98.9 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 8-10% | |
| Positive control | Adrenal gland | |
| Negative control | Adipose tissue |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 98.9 kDa |
| ⓘ | Localization | Cytoplasm / Nucleus |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human |
Section 1
Real Curated MRTFA Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 8-10% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A32468-2 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected MRTFA Western Blot Band Size?
Use the product-observed 98.9 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 98.9 kDa | Matches the authoritative product WB observation. |
| 98.9 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected MRTFA appearancePlan around 98.9 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 98.9 kDa; use this as the primary experimental expectation. |
| Calculated mass | 98.9 kDa from UniProt Q969V6; retain as context. |

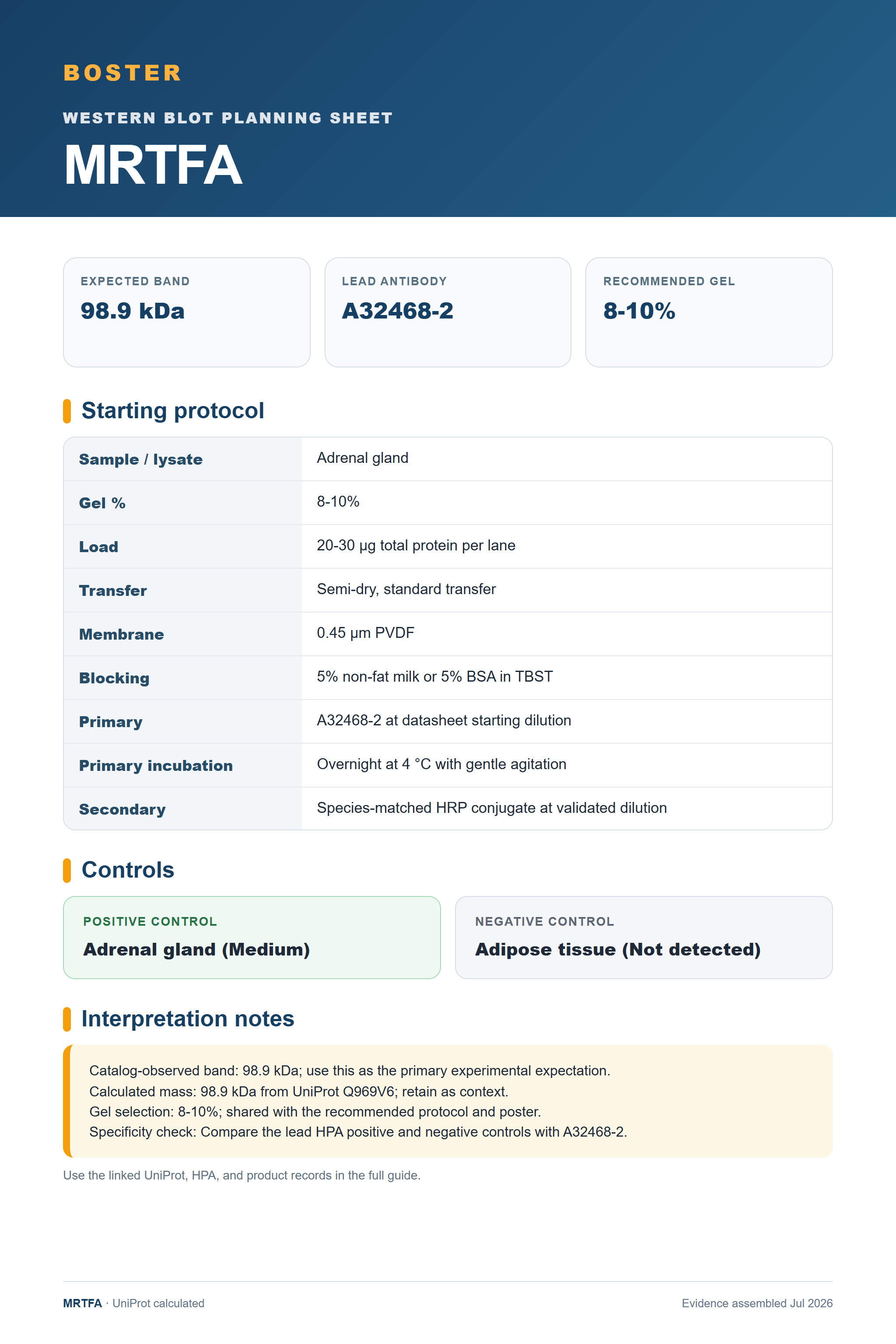

| Gel selection | 8-10%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A32468-2. |
| Situation | Likely cause | Next action |
|---|---|---|
| 98.9 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing MRTFA band
A32468-2 · MRTFA
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for MRTFA Western blot
🧪Use Adrenal gland as the first positive-control candidate and Adipose tissue as the HPA Not detected negative candidate.
Positive control: Adrenal gland (Medium)
Negative control: Adipose tissue (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for MRTFA
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adrenal gland | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Bone marrow | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Breast | Reported tissue cells | Medium | Protein (HPA) | HPA → |
Section 3
Advanced MRTFA Western Blot Tips
Deeper troubleshooting and optimisation questions for MRTFA, answered from its protein features.
Which band should guide the blot?
Use 98.9 kDa, the observation attached to the authoritative A32468-2 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 98.9 kDa expectation.
Which positive control should I start with?
Start with Adrenal gland, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Adipose tissue as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 8-10% consistently across the quick facts, protocol table, and poster.
What transfer method to use for MRTFA Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A32468-2 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
MRTFA Western Blot Reagents
Human-reactive MRTFA Western blot reagents with authoritative product imagery.
Real WB data
Anti-Mkl1/MRTFA Antibody Picoband®
Cat # A32468-2
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q969V6
- Human Protein Atlas — MRTFA
- A32468-2 product record
- PMC10411688 — Active tissue adhesive activates mechanosensors and prevents muscle atrophy (Nature materials, 2023)
- PMC12795861 — MAPK14 converges on key transcriptional machinery to promote vascular smooth muscle cell degeneration in abdominal aortic aneurysm (Signal transduction and targeted therapy, 2026)
- PMC13419796 — P95-HER2 promotes metastatic progression by biasing MRTFA dependent signaling (bioRxiv : the preprint server for biology, 2026)
