MYH6 · Western blot design guide
MYH6 Western Blot Planning Guide
Plan a MYH6 Western blot around the catalog-observed 223.7 kDa band, image-backed A02808-2 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
MYH6 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 223.7 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 4-12% gradient | |
| Positive control | Heart muscle | |
| Negative control | Adrenal gland |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 223.7 kDa |
| ⓘ | Localization | Cytoplasm, myofibril |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1

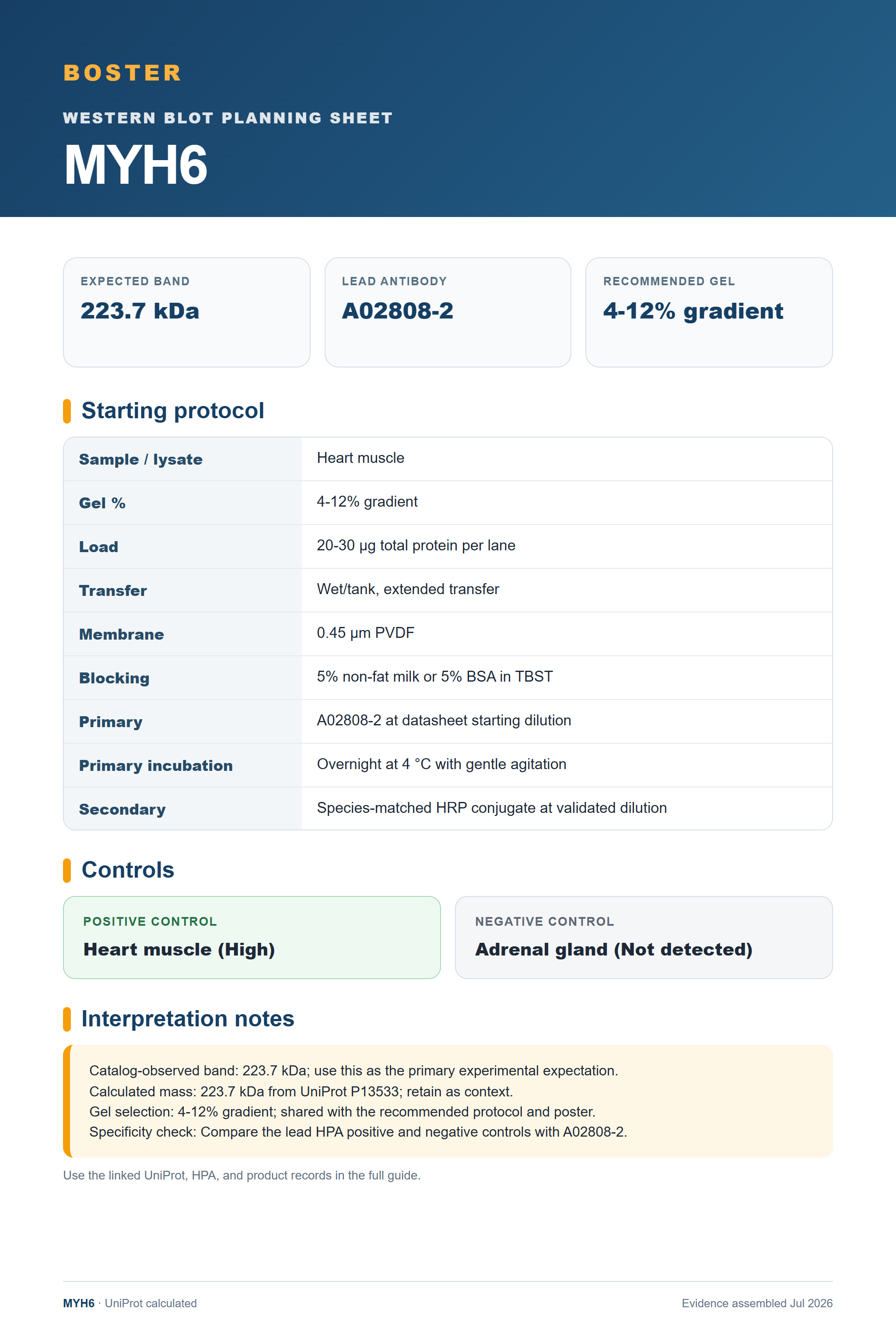

Real Curated MYH6 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Heart muscle |
| Gel % | 4-12% gradient |
| Load | 20-30 µg total protein per lane |
| Transfer | Wet/tank, extended transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A02808-2 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected MYH6 Western Blot Band Size?
Use the product-observed 223.7 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 223.7 kDa | Matches the authoritative product WB observation. |
| 223.7 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected MYH6 appearancePlan around 223.7 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 223.7 kDa; use this as the primary experimental expectation. |
| Calculated mass | 223.7 kDa from UniProt P13533; retain as context. |
| Gel selection | 4-12% gradient; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A02808-2. |
| Situation | Likely cause | Next action |
|---|---|---|
| 223.7 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing MYH6 band
A02808-2 · MYH6
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for MYH6 Western blot
🧪Use Heart muscle as the first positive-control candidate and Adrenal gland as the HPA Not detected negative candidate.
Positive control: Heart muscle (High)
Negative control: Adrenal gland (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for MYH6
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Section 3
Advanced MYH6 Western Blot Tips
Deeper troubleshooting and optimisation questions for MYH6, answered from its protein features.
Which band should guide the blot?
Use 223.7 kDa, the observation attached to the authoritative A02808-2 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 223.7 kDa expectation.
Which positive control should I start with?
Start with Heart muscle, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Adrenal gland as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 4-12% gradient consistently across the quick facts, protocol table, and poster.
What transfer method to use for MYH6 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A02808-2 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
MYH6 Western Blot Reagents
Human/Mouse/Rat-reactive MYH6 Western blot reagents with authoritative product imagery.
Real WB data
Anti-MYH6 Antibody Picoband®
Cat # A02808-2
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P13533
- Human Protein Atlas — MYH6
- A02808-2 product record
- PMC9995127 — Long non-coding RNA lincRNA-erythroid prosurvival attenuates inflammation by enhancing myosin heavy chain 6 stability through recruitment of heterogeneous nuclear ribonucleoprotein L in myocardial infarction (Bioengineered, 2022)
- PMC7426859 — Lionheart LincRNA alleviates cardiac systolic dysfunction under pressure overload (Communications biology, 2020)
- PMC9974737 — Myh6 promoter-driven Cre recombinase excises floxed DNA fragments in a subset of male germline cells (Journal of molecular and cellular cardiology, 2023)
