RAB10 · Western blot design guide
RAB10 Western Blot Planning Guide
Plan a RAB10 Western blot around the catalog-observed 22.5 kDa band, image-backed PB9788 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
RAB10 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 22.5 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Esophagus | |
| Negative control | Adipose tissue |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 22.5 kDa |
| ⓘ | Localization | Cytoplasmic vesicle membrane / Golgi apparatus membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated RAB10 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Duodenum |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, short transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PB9788 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected RAB10 Western Blot Band Size?
Use the product-observed 22.5 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 22.5 kDa | Matches the authoritative product WB observation. |
| 22.5 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected RAB10 appearancePlan around 22.5 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 22.5 kDa; use this as the primary experimental expectation. |
| Calculated mass | 22.5 kDa from UniProt P61026; retain as context. |

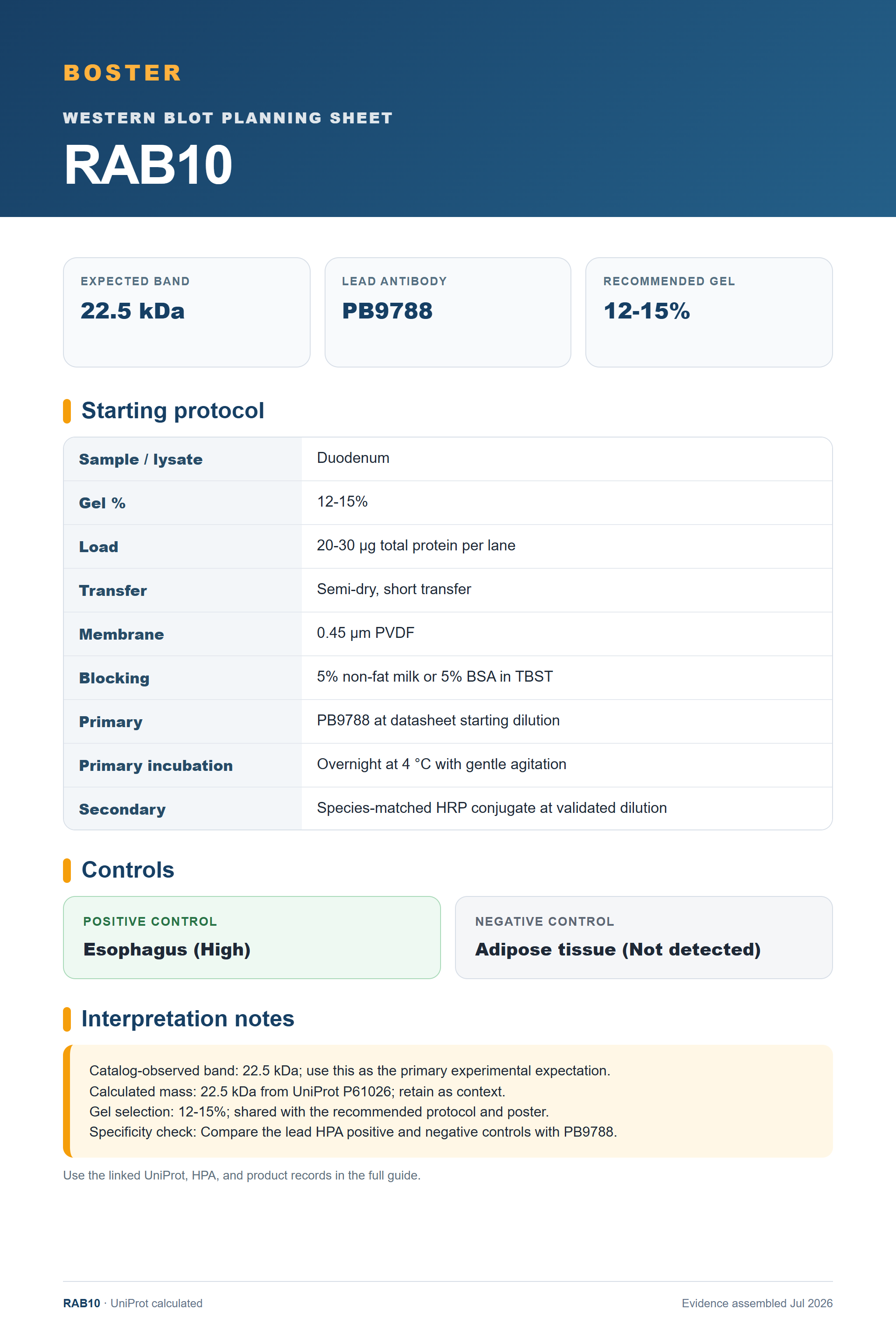

| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PB9788. |
| Situation | Likely cause | Next action |
|---|---|---|
| 22.5 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing RAB10 band
PB9788 · RAB10
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for RAB10 Western blot
🧪Use Esophagus as the first positive-control candidate and Adipose tissue as the HPA Not detected negative candidate.
Positive control: Esophagus (High)
Negative control: Adipose tissue (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for RAB10
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Esophagus | Reported tissue cells | High | Protein (HPA) | HPA → |
| Small intestine | Reported tissue cells | High | Protein (HPA) | HPA → |
| Pancreas | Reported tissue cells | High | Protein (HPA) | HPA → |
| Duodenum | Reported tissue cells | High | Protein (HPA) | HPA → |
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adipose tissue | Reported tissue cells | Not detected | Protein (HPA) | HPA → |
Section 3
Advanced RAB10 Western Blot Tips
Deeper troubleshooting and optimisation questions for RAB10, answered from its protein features.
Which band should guide the blot?
Use 22.5 kDa, the observation attached to the authoritative PB9788 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 22.5 kDa expectation.
Which positive control should I start with?
Start with Esophagus, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Adipose tissue as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for RAB10 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PB9788 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
RAB10 Western Blot Reagents
Human/Mouse/Rat-reactive RAB10 Western blot reagents with authoritative product imagery.
Real WB data
Anti-RAB10 Antibody Picoband®
Cat # PB9788
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P61026
- Human Protein Atlas — RAB10
- PB9788 product record
- PMC12648586 — Rab10 plays a protective role in the development of pathological cardiac hypertrophy (Journal of molecular and cellular cardiology plus, 2025)
- PMC11270673 — [MiRNA-103-3p promotes neural cell autophagy by activating Wnt/β-catenin signaling via targeting rab10 in a rat model of depression] (Nan fang yi ke da xue xue bao = Journal of Southern Medical University, 2024)
- PMC11853464 — Small G Protein Regulates Virus Infection via MiRNA and Autophagy in Shrimp (Biomolecules, 2025)
