RPL17 · Western blot design guide

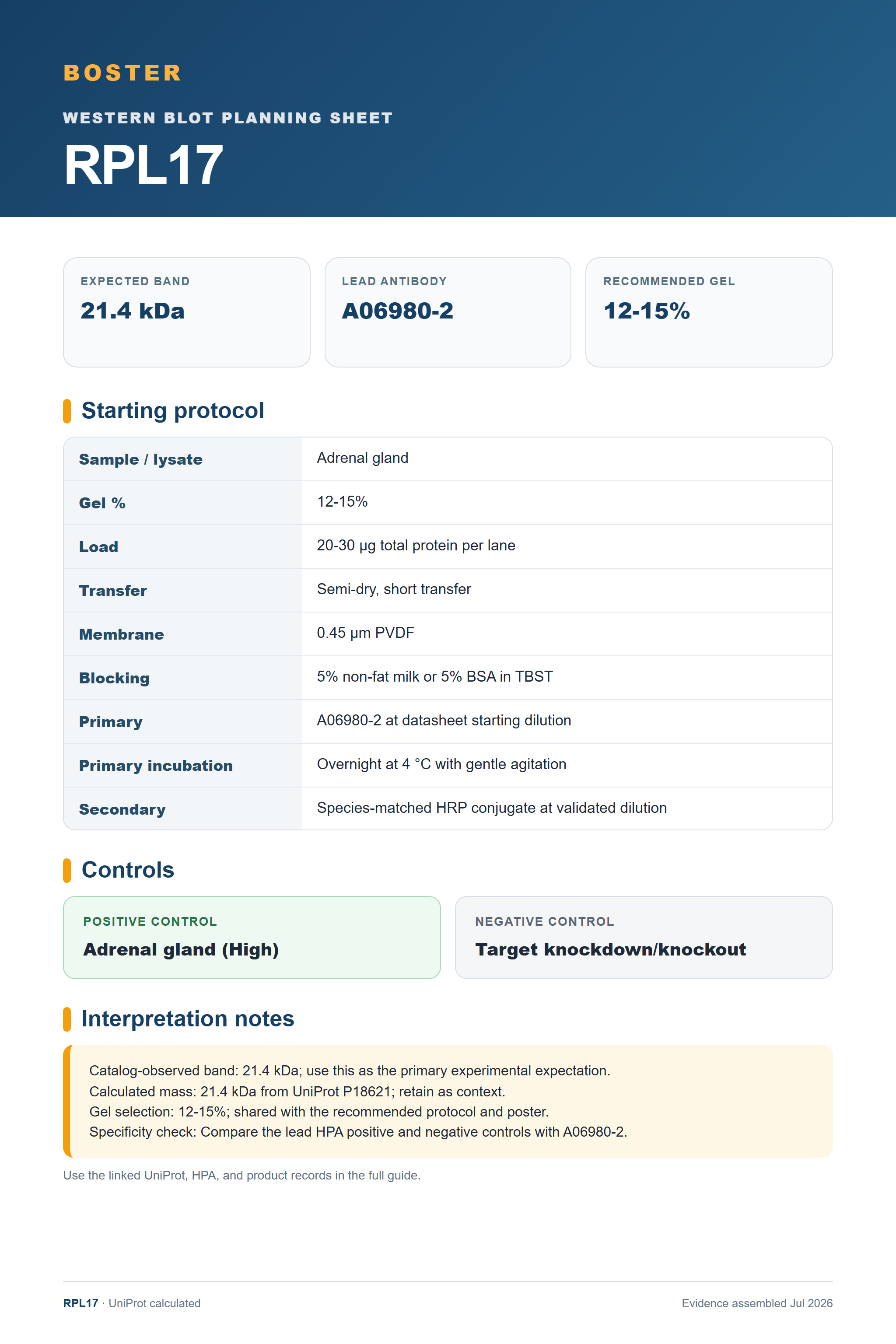

RPL17 Western Blot Planning Guide
Plan a RPL17 Western blot around the catalog-observed 21.4 kDa band, image-backed A06980-2 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
RPL17 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 21.4 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Adrenal gland | |
| Negative control | Target knockdown/knockout |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 21.4 kDa |
| ⓘ | Localization | Cytoplasm |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated RPL17 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, short transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A06980-2 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected RPL17 Western Blot Band Size?
Use the product-observed 21.4 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 21.4 kDa | Matches the authoritative product WB observation. |
| 21.4 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected RPL17 appearancePlan around 21.4 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 21.4 kDa; use this as the primary experimental expectation. |
| Calculated mass | 21.4 kDa from UniProt P18621; retain as context. |
| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A06980-2. |
| Situation | Likely cause | Next action |
|---|---|---|
| 21.4 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing RPL17 band
A06980-2 · RPL17
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for RPL17 Western blot
🧪Use Adrenal gland as the first positive-control candidate; no defensible HPA Not detected tissue was available, so use a target knockdown/knockout negative control.
Positive control: Adrenal gland (High)
Negative control: Target knockdown/knockout
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for RPL17
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adrenal gland | Reported tissue cells | High | Protein (HPA) | HPA → |
| Cerebellum | Reported tissue cells | High | Protein (HPA) | HPA → |
| Caudate | Reported tissue cells | High | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | High | Protein (HPA) | HPA → |
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced RPL17 Western Blot Tips
Deeper troubleshooting and optimisation questions for RPL17, answered from its protein features.
Which band should guide the blot?
Use 21.4 kDa, the observation attached to the authoritative A06980-2 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 21.4 kDa expectation.
Which positive control should I start with?
Start with Adrenal gland, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use a target knockdown/knockout control when no HPA Not detected tissue is available.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for RPL17 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A06980-2 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
RPL17 Western Blot Reagents
Human/Mouse/Rat-reactive RPL17 Western blot reagents with authoritative product imagery.
Real WB data
Anti-RPL17 Antibody Picoband®
Cat # A06980-2
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P18621
- Human Protein Atlas — RPL17
- A06980-2 product record
- PMC12667541 — Microglia Drive Peripapillary Vascular Density Reduction in Normal Tension Glaucoma by Regulating the Rpl17/Stat5b/Apoa1 Axis (Advanced science (Weinheim, Baden-Wurttemberg, Germany), 2025)
- PMC2711601 — A trans-membrane segment inside the ribosome exit tunnel triggers RAMP4 recruitment to the Sec61p translocase (The Journal of cell biology, 2009)
- PMC3502943 — Ribosomal protein L17, RpL17, is an inhibitor of vascular smooth muscle growth and carotid intima formation (Circulation, 2012)
