TRPV2 · Western blot design guide
TRPV2 Western Blot Planning Guide
Plan a TRPV2 Western blot around the catalog-observed 86 kDa band, image-backed A02786-3 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
TRPV2 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 86 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 8-10% | |
| Positive control | Adrenal gland | |
| Negative control | Placenta |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 86 kDa |
| ⓘ | Localization | Cell membrane / Cytoplasm |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1

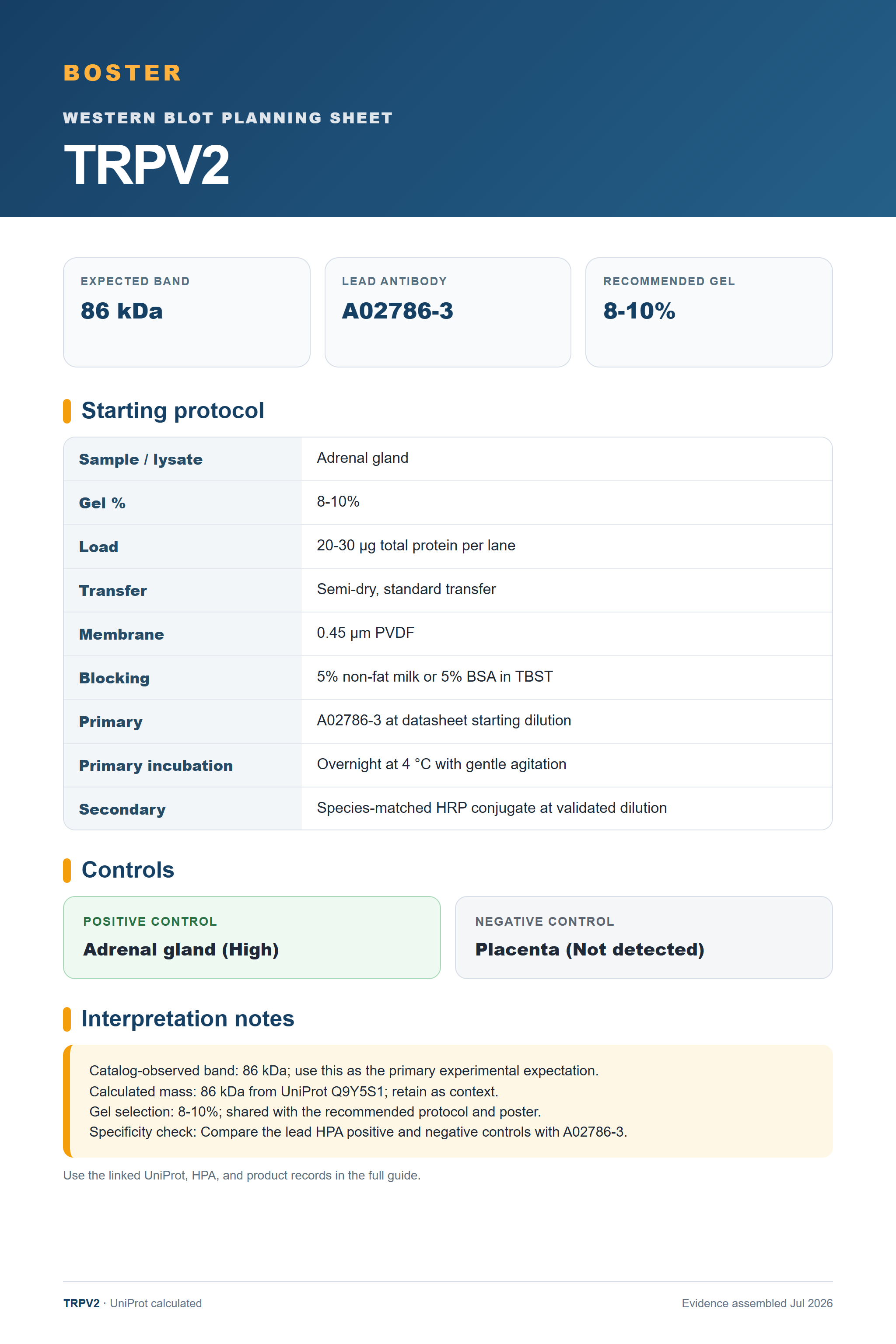

Real Curated TRPV2 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 8-10% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A02786-3 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected TRPV2 Western Blot Band Size?
Use the product-observed 86 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 86 kDa | Matches the authoritative product WB observation. |
| 86 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected TRPV2 appearancePlan around 86 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 86 kDa; use this as the primary experimental expectation. |
| Calculated mass | 86 kDa from UniProt Q9Y5S1; retain as context. |
| Gel selection | 8-10%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A02786-3. |
| Situation | Likely cause | Next action |
|---|---|---|
| 86 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing TRPV2 band
A02786-3 · TRPV2
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for TRPV2 Western blot
🧪Use Adrenal gland as the first positive-control candidate and Placenta as the HPA Not detected negative candidate.
Positive control: Adrenal gland (High)
Negative control: Placenta (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for TRPV2
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adrenal gland | Reported tissue cells | High | Protein (HPA) | HPA → |
| Fallopian tube | Reported tissue cells | High | Protein (HPA) | HPA → |
| Cervix | Reported tissue cells | High | Protein (HPA) | HPA → |
| Endometrium | Reported tissue cells | High | Protein (HPA) | HPA → |
Section 3
Advanced TRPV2 Western Blot Tips
Deeper troubleshooting and optimisation questions for TRPV2, answered from its protein features.
Which band should guide the blot?
Use 86 kDa, the observation attached to the authoritative A02786-3 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 86 kDa expectation.
Which positive control should I start with?
Start with Adrenal gland, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Placenta as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 8-10% consistently across the quick facts, protocol table, and poster.
What transfer method to use for TRPV2 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A02786-3 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
TRPV2 Western Blot Reagents
Human/Mouse/Rat-reactive TRPV2 Western blot reagents with authoritative product imagery.
Real WB data
Anti-VRL1/TRPV2 Antibody Picoband®
Cat # A02786-3
Real WB data
Anti-VRL1/TRPV2 Antibody Picoband®
Cat # PA1977
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q9Y5S1
- Human Protein Atlas — TRPV2
- A02786-3 product record
- PMC3877370 — Understanding the cellular function of TRPV2 channel through generation of specific monoclonal antibodies (PloS one, 2013)
- PMC6434859 — Reduced transient receptor potential vanilloid 2 expression in alveolar macrophages causes COPD in mice through impaired phagocytic activity (BMC pulmonary medicine, 2019)
- PMC6191893 — TRPV2-induced Ca(2+)-calcineurin-NFAT signaling regulates differentiation of osteoclast in multiple myeloma (Cell communication and signaling : CCS, 2018)
