VAMP7 · Western blot design guide
VAMP7 Western Blot Planning Guide
Plan a VAMP7 Western blot around the catalog-observed 24.9 kDa band, image-backed PB10017 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
VAMP7 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 24.9 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Breast | |
| Negative control | Skeletal muscle |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 24.9 kDa |
| ⓘ | Localization | Cytoplasmic vesicle, secretory vesicle membrane / Golgi apparatus, trans-Golgi network membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Rat |
Section 1
Real Curated VAMP7 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Appendix |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, short transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PB10017 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected VAMP7 Western Blot Band Size?
Use the product-observed 24.9 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 24.9 kDa | Matches the authoritative product WB observation. |
| 24.9 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected VAMP7 appearancePlan around 24.9 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 24.9 kDa; use this as the primary experimental expectation. |
| Calculated mass | 24.9 kDa from UniProt P51809; retain as context. |

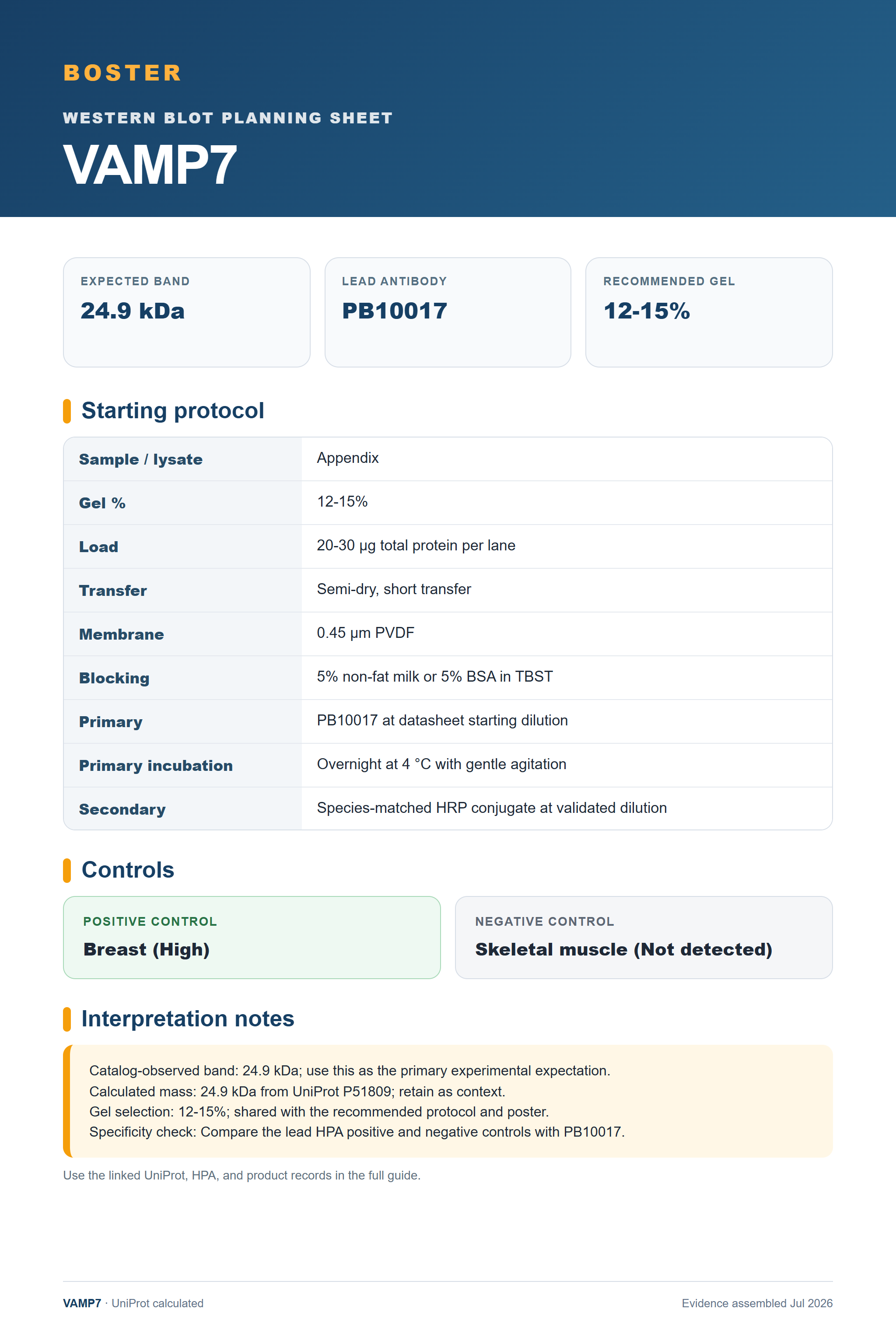

| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PB10017. |
| Situation | Likely cause | Next action |
|---|---|---|
| 24.9 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing VAMP7 band
PB10017 · VAMP7
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for VAMP7 Western blot
🧪Use Breast as the first positive-control candidate and Skeletal muscle as the HPA Not detected negative candidate.
Positive control: Breast (High)
Negative control: Skeletal muscle (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for VAMP7
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Breast | Reported tissue cells | High | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | High | Protein (HPA) | HPA → |
| Bone marrow | Reported tissue cells | High | Protein (HPA) | HPA → |
| Cerebral cortex | Reported tissue cells | High | Protein (HPA) | HPA → |
Section 3
Advanced VAMP7 Western Blot Tips
Deeper troubleshooting and optimisation questions for VAMP7, answered from its protein features.
Which band should guide the blot?
Use 24.9 kDa, the observation attached to the authoritative PB10017 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 24.9 kDa expectation.
Which positive control should I start with?
Start with Breast, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Skeletal muscle as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for VAMP7 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PB10017 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
VAMP7 Western Blot Reagents
Human/Rat-reactive VAMP7 Western blot reagents with authoritative product imagery.
Real WB data
Anti-SYBL1/VAMP7 Antibody Picoband®
Cat # PB10017
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P51809
- Human Protein Atlas — VAMP7
- PB10017 product record
- PMC7977461 — miR-375 prevents high-fat diet-induced insulin resistance and obesity by targeting the aryl hydrocarbon receptor and bacterial tryptophanase (tnaA) gene (Theranostics, 2021)
- PMC12955100 — VAMP7 governs ferroptosis suppression and cisplatin resistance in esophageal cancer: a dual-targeting therapeutic paradigm (Cancer cell international, 2026)
- PMC3549491 — Structural basis of the intracellular sorting of the SNARE VAMP7 by the AP3 adaptor complex (Developmental cell, 2012)
