Product Info Summary
|Size:||96 wells/kit, with removable strips.|
|Sample Types:||cell culture supernatants, cell lysates, serum and plasma (heparin, EDTA).|
Customers Who Bought This Also Bought
Human CXCL16 ELISA Kit PicoKine®
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Human CXCL16 ELISA Kit PicoKine™ (96 Tests). Quantitate Human CXCL16 in cell culture supernatants, cell lysates, serum and plasma (heparin, EDTA). Sensitivity: 10pg/ml.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Human CXCL16 ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0741)
Clonality of Antibodies
See Datasheet for details
Expression system for standard: E.coli; Immunogen sequence: N49-P137
93.7 pg/ml - 6,000 pg/ml
There is no detectable cross-reactivity with other relevant proteins.
EK0741 is reactive to CXCL16 in Human samples
Validated Sample Types
cell culture supernatants, cell lysates, serum and plasma (heparin, EDTA).
EK0741 is guaranteed for ELISA in Human by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of CXCL16
Chemokine (C-X-C motif) ligand 16 (CXCL16) is a small cytokine belonging to the CXC chemokine family. Larger than other chemokines (with 254 amino acids), CXCL16 is composed of a CXC chemokine domain, a mucin-like stalk, a transmembrane domain and a cytoplasmic tail containing a potential tyrosine phosphorylation site that may bind SH2. These are unusual features for a chemokine, and allow CXCL16 to be expressed as a cell surface bound molecule, as well as a soluble chemokine. CXCL16 is produced by dendritic cells found in the T cell zones of lymphoid organs, and by cells found in the red pulp of the spleen. Cells that bind and migrate in response to CXCL16 include several subsets of T cells, and natural killer T (NKT) cells. CXCL16 interacts with the chemokine receptorCXCR6, also known as Bonzo. The novel CXC-chemokine ligand 16 (CXCL16) functions as transmembrane adhesion molecule on the surface of APCs and as a soluble chemoattractant for activated T cells. Expression of CXCL16 is induced by the inflammatory cytokines IFN-gamma and TNF-alpha. The gene for human CXCL16 is located on chromosome 17.
|EK0741-CAP||Anti-Human CXCL16 Pre-coated 96-well strip microplate||1|
|EK0741-ST||Human CXCL16 Standard||2 vials, 10 ng/tube|
|EK0741-DA||Human CXCL16 Biotinylated antibody (100x)||100ul|
|AR1103||Avidin-Biotin-Peroxidase Complex (100x)||100ul|
|AR1104||Color Developing Reagent (TMB)||10ml|
|AR1106-5||Wash Buffer (25x)||20ml|
|PLA-SEA||Adhesive plate sealers||4|
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Innovating Scientists Reward
If you are the first to review this product, or if you have results for a special sample, species or application this product is not validated in, share your results with us and receive product credits you can use towards any Boster products! Applicable to all scientists world wide.
Submit A Review
Validation Standard Curve O.D. At 450nm
Data Example Images
Click image to see more details

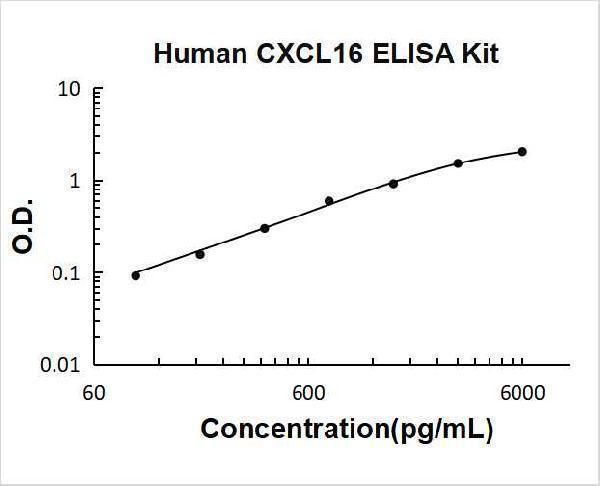

Human CXCL16 PicoKine ELISA Kit standard curve
Recommended Sample Dilution Ratios
According to our internal validation assays using this ELISA kit, to detect CXCL16, Dilution ratio of 1:5, concentration in serum is around 2ng/ml.
Some articles we found to cite concentrations of CXCL16 in samples: 24701213 (Pubmed IDs).
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Human CXCL16 ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
|Intra-Assay Precision||Inter-Assay Precision|
We ensure reproducibility by testing three samples with differing concentrations of CXCL16 in ELISA kits from four different production batches/lots.
|Lots||Lot 1 (pg/ml)||Lot 2 (pg/ml)||Lot 3 (pg/ml)||Lot 4 (pg/ml)||Mean (pg/ml)||Standard Deviation||CV (%)|
Gene/Protein Information For CXCL16 (Source: Uniprot.Org, NCBI)
C-X-C motif chemokine 16
intercrine alpha (chemokine CxC) family
chemokine (C-X-C motif) ligand 16; CXC chemokine ligand 16; CXCL16; CXCLG16; Scavenger receptor for phosphatidylserine and oxidized low density lipoprotein; SCYB16; Small-inducible cytokine B16; SRPSOXC-X-C motif chemokine 16; SR-PSOXTransmembrane chemokine CXCL16 CXCL16 CXCLG16, SR-PSOX, SRPSOX C-X-C motif chemokine ligand 16 C-X-C motif chemokine 16|CXC chemokine ligand 16|chemokine (C-X-C motif) ligand 16|scavenger receptor for phosphatidylserine and oxidized low density lipoprotein|small-inducible cytokine B16|transmembrane chemokine CXCL16*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".
For more info on CXCL16, check out the CXCL16 Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for CXCL16: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected]
