Anti-BMP6 Rabbit Monoclonal Antibody

Western blot analysis of BMP6 using anti-BMP6 antibody (M06924-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human SiHa whole cell lysates,
Lane 3: human HEL whole cell lysates,
Lane 4: human 293T whole cell lysates,
Lane 5: rat PC-12 whole cell lysates,
Lane 6: rat RH35 whole cell lysates,
Lane 7: mouse HEPA1-6 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-BMP6 antigen affinity purified monoclonal antibody (Catalog # M06924-1) at 1:500 overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:1000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for BMP6 at approximately 42 kDa. The expected band size for BMP6 is at 57 kDa.

Immunofluorescence staining and cardiac tissue protein assay and BMP6 knockdown. A Immunofluorescence staining of markers specific to macrophages and type 2 macrophages. B and C Western blot was used to detect the changes in protein levels in the cardiac tissues between DCM and NC (n = 3). D and E The knockdown of BMP6 and the expression levels of SMAD6 and COL1A1 (n = 3). The siRNA group represents the knockdown group, si-NC represents the empty vector group, and blank represents the control group. The significance of * P in the above graph: * P < 0.05; ** P < 0.01. F Potential interventional herbs based on BMP6 inverse prediction
Index in PubMed under a CC BY license. PMID: 39825396

Mendelian randomization analysis between BMP6 and DCM. A Scatter trend plot of effective SNPs. B The black line represents the nature of each SNP, and the red lines represent the combined nature of the SNPs analyzed by the IVW and MR Egger methods, respectively. C SNPs distribution map. D Leave-one-out analysis. The red line shows the results of the combined analysis
Index in PubMed under a CC BY license. PMID: 39825396

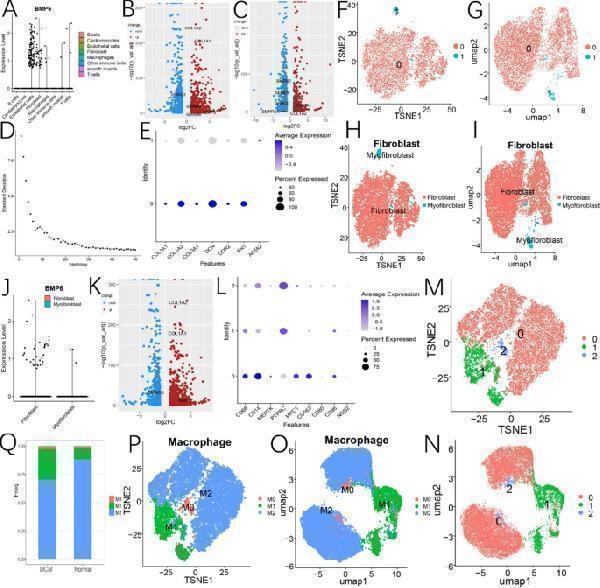

BMP6 expression in different cellular subpopulations. A Differential expression of BMP6 in various cell types of the heart. B Differential gene expression in fibroblasts between DCM and NH. C Differential gene expression in endothelial cells between DCM and NH. D Elbow diagram obtained using the harmony method and we selected 0–15 as the number of dimensions. E Specific markers and expression levels in fibroblasts and myofibroblasts. F – I subdividing and annotating fibroblast subpopulations by TSNE and Umap methods. J BMP6 expression between conventional fibroblasts and myofibroblasts. K differential expression of BMP6 in fibroblasts between DCM and NH. L Specific markers and expression levels of macrophage subpopulations. M – P Subdividing and annotating macrophage subpopulations by TSNE and Umap methods. Q Differences in the percentage of macrophage subpopulations abundance between DCM and NH
Index in PubMed under a CC BY license. PMID: 39825396
