CHCHD3 antibody (A06593-2) performs well in ELISA, Flow Cytometry, IP, IF, IHC, ICC, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:
Flow Cytometry analysis of SH-SY5Y cells using anti-CHCHD3 antibody (A06593-2).
Overlay histogram showing SH-SY5Y cells stained with A06593-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-CHCHD3 Antibody (A06593-2, 1 μg/1x106 cells) for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Overlay histogram showing SH-SY5Y cells stained with A06593-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-CHCHD3 Antibody (A06593-2, 1 μg/1x106 cells) for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Bundle Save
Anti-CHCHD3 Antibody Picoband®
CHCHD3 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | ELISA, Flow Cytometry, IP, IF, IHC, ICC, WB |
Tested Applications

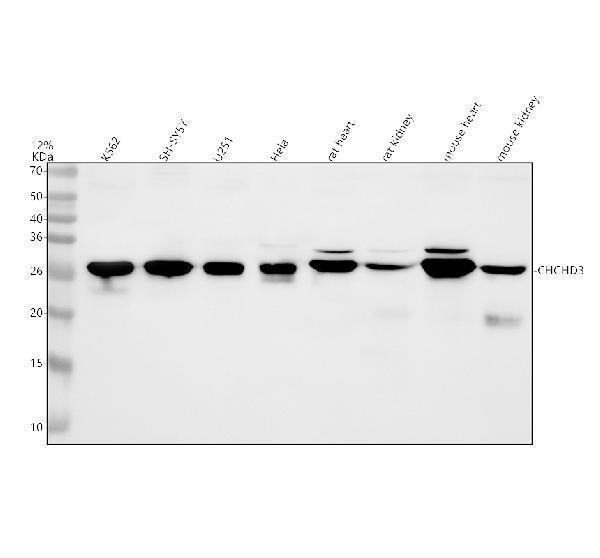

CHCHD3 antibody was positively detected by WB in:
human 293T whole cell, human Hela whole cell, human Jurkat whole cell, rat liver tissue, rat RH-35 whole cell, mouse liver tissue, mouse NIH/3T3 whole cell, human K562 whole cell, human SH-SY5Y whole cell, human U251 whole cell, rat heart tissue, rat kidney tissue, mouse heart tissue, mouse kidney tissue, U251 whole cell
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
CHCHD3 antibody was positively detected by IHC in:
human liver cancer tissue, rat heart tissue, mouse heart tissue, human colon cancer tissue, human lung cancer tissue
Use TE buffer pH 9.0 for antigen retrieval; (*) citrate buffer pH 6.0 is an alternative.
CHCHD3 antibody was positively detected by ICC/IF in:
A549 cell
CHCHD3 antibody was positively detected by FC in:
SH-SY5Y cell
Recommend Dilution
Application
Dilution
Species
Western blot
0.25-0.5 μg/ml
Human, Mouse, Rat
Immunohistochemistry(Paraffin-embedded Section)
2-5 μg/ml
Human
Immunocytochemistry/Immunofluorescence
5 μg/ml
Human
Immunoprecipitation
0.5-2 μg/ml
Human
Flow Cytometry (Fixed)
1-3 μg/1x106 cells
Human
ELISA
0.1-0.5 μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Note: For flow cytometry (FCM), suitable for fixed cells only. Not suitable for FACS or surface flow cytometry using live cells.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
IHC
IF
IP
ELISA
Human
Tested
Tested
Recommend
Recommend
Recommend
Rat
Tested
Tested
Recommend
Recommend
Recommend
Mouse
Tested
Tested
Recommend
Recommend
Recommend
Monkey
Predicted
Predicted
Predicted
Predicted
Predicted
Rabbit
Predicted
Predicted
Predicted
Predicted
Predicted
Dog
Predicted
Predicted
Predicted
Predicted
Predicted
Bovine
Predicted
Predicted
Predicted
Predicted
Predicted
Product Information
Product Name
Anti-CHCHD3 Antibody Picoband®
View all CHCHD3 Antibodies
View all CHCHD3 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
At -20°C for one year from date of receipt.
After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months.
Avoid repeated freezing and thawing.
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Immunogen
E.coli-derived human CHCHD3 recombinant protein (Position: M1-G227).
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Calculated Molecular Weight
26.2 kDa
Background of CHCHD3
The protein encoded by this gene is an inner mitochondrial membrane scaffold protein. Absence of the encoded protein affects the structural integrity of mitochondrial cristae and leads to reductions in ATP production, cell growth, and oxygen consumption. This protein is part of the mitochondrial contact site and cristae organizing system (MICOS). Several transcript variants encoding different isoforms have been found for this gene.
Cite This Product
Anti-CHCHD3 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A06593-2)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
99%
High Homology
Rabbit
91%
High Homology
Dog
91%
High Homology
Mouse
90%
High Homology
Cow
90%
High Homology
Sheep
89%
Moderate Homology
Rat
86%
Moderate Homology
Zebrafish
59%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for CHCHD3 antibody
Immunohistochemistry (IHC) protocol for CHCHD3 antibody
Immunocytochemistry/Immunofluorescence (ICC/IF) protocol for CHCHD3 antibody
Flow Cytometry (FC) protocol for CHCHD3 antibody
Review
Have you used Anti-CHCHD3 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-CHCHD3 Antibody Picoband® performs excellently in relevant applications for ELISA, Flow Cytometry, IP, IF, IHC, ICC, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A06593-2
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
