GJB1 antibody (A01050) performs well in WB and shows reactivity with Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

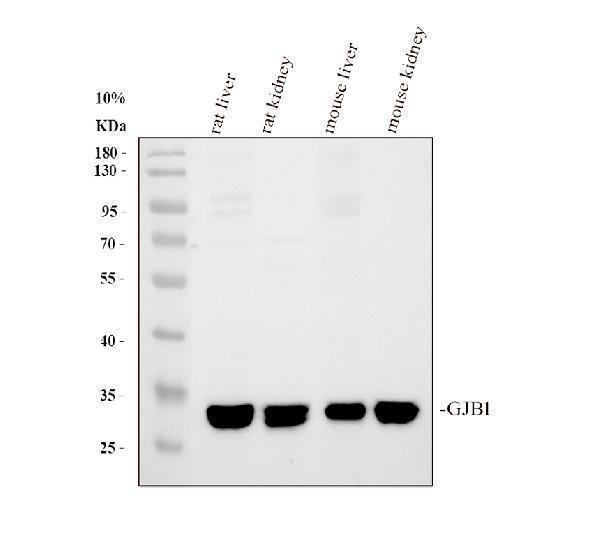

Western blot analysis of GJB1 using anti-GJB1 antibody (A01050).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat liver tissue lysates,
Lane 2: rat kidney tissue lysates,
Lane 3: mouse liver tissue lysates,
Lane 4: mouse kidney tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-GJB1 antigen affinity purified polyclonal antibody (Catalog # A01050) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for GJB1 at approximately 32 kDa. The expected band size for GJB1 is at 32 kDa.
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat liver tissue lysates,
Lane 2: rat kidney tissue lysates,
Lane 3: mouse liver tissue lysates,
Lane 4: mouse kidney tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-GJB1 antigen affinity purified polyclonal antibody (Catalog # A01050) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for GJB1 at approximately 32 kDa. The expected band size for GJB1 is at 32 kDa.
Bundle Save
Anti-Connexin 32/GJB1 Antibody Picoband®
GJB1 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Mouse, Rat | Rabbit | WB |
Tested Applications
GJB1 antibody was positively detected by WB in:
rat liver tissu, rat kidney tissue, mouse liver tissue, mouse kidney tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.5μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
Rat
Tested
Mouse
Tested
Human
Predicted
Bovine
Predicted
Sheep
Predicted
Dog
Predicted
Monkey
Predicted
Rabbit
Predicted
Product Information
Product Name
Anti-Connexin 32/GJB1 Antibody Picoband®
View all GJB1 Antibodies
View all GJB1 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
A synthetic peptide corresponding to a sequence in the middle region of human Connexin 32/GJB1, identical to the related mouse and rat sequences.
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
32 kDa
Calculated Molecular Weight
32.0 kDa
Background of GJB1
Gap junction beta-1 protein (GJB1), also known as connexin 32 (Cx32) is a transmembrane protein that in humans is encoded by the GJB1 gene. This gene encodes a member of the gap junction protein family. The gap junction proteins are membrane-spanning proteins that assemble to form gap junction channels that facilitate the transfer of ions and small molecules between cells. According to sequence similarities at the nucleotide and amino acid levels, the gap junction proteins are divided into two categories, alpha and beta. Mutations in this gene cause X-linked Charcot-Marie-Tooth disease, an inherited peripheral neuropathy. Alternatively spliced transcript variants encoding the same protein have been found for this gene.
Cite This Product
Anti-Connexin 32/GJB1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A01050)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Mouse
100%
High Homology
Rat
100%
High Homology
Cow
100%
High Homology
Sheep
100%
High Homology
Dog
100%
High Homology
Monkey
100%
High Homology
Rabbit
94%
High Homology
Zebrafish
43%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for GJB1 antibody
Review
Have you used Anti-Connexin 32/GJB1 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-Connexin 32/GJB1 Antibody Picoband® performs excellently in relevant applications for WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A01050
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
