Anti-NUP98 Antibody Picoband™

Product Name

Anti-NUP98 Antibody Picoband™

View all NUP98 Antibodies

SKU/Catalog Number

A01301-1

Size

100 µg/vial

Form

Lyophilized

Description

Boster Bio Anti-NUP98 Antibody Picoband™ catalog # A01301-1. Tested in WB, ICC/IF, FCM, ELISA applications. This antibody reacts with Human, Monkey, Mouse, Rat.

Storage & Handling

At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.

Cite This Product

Anti-NUP98 Antibody Picoband™ (Boster Biological Technology, Pleasanton CA, USA, Catalog # A01301-1)

Host

Rabbit

Contents

Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.

Clonality

Polyclonal

Clone Number

1B9

Isotype

IgG

Immunogen

E.coli-derived human NUP98 recombinant protein (Position: H728-I1787). Human NUP98 shares 89.1% and 89% amino acid (aa) sequence identity with mouse and rat NUP98, respectively.

*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.

Cross-reactivity

No cross reactivity with other proteins.

Reactive Species

A01301-1 is reactive to NUP98 in Human, Monkey, Mouse, Rat

Applications

A01301-1 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee

Observed Molecular Weight

98,105 kDa

Calculated molecular weight

197.579kDa

Background of NUP98

Nuclear pore complex protein Nup98-Nup96 is a protein that in humans is encoded by the NUP98 gene. This gene is one of several genes located in the imprinted gene domain of 11p15.5, an important tumor-suppressor gene region. NUP98 is a peripheral nucleoporin located at both the cytoplasmic and nuclear sides of the central channel of the NPC. NUP98 phosphorylation is critical for NPC disassembly at the onset of mitosis. It also plays roles in gene expression, mitotic checkpoint, and pathogenesis. Ligand blot analysis suggested that NUP98 can function as a docking protein for cytosol-mediated docking of import substrates. In addition to that, NUP98 is a target of the vesicular stomatitis virus M protein-mediated inhibition of mRNA nuclear export.

Antibody Validation

Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.

View more details

Reconsitution

Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.

Assay Dilutions Recommendation

The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.

Western blot, 0.25-0.5 µg/ml, Human, Monkey, Mouse, Rat
Immunocytochemistry/Immunofluorescence, 5 µg/ml, Human
Flow Cytometry (Fixed), 1-3 µg/1x10⁶ cells, Human
ELISA, 0.1-0.5 µg/ml, Human

Validation Images & Assay Conditions

Click image to see more details

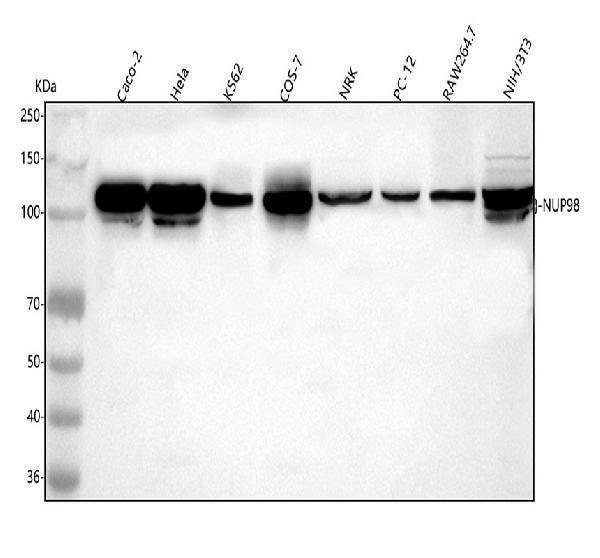

Figure 1. Western blot analysis of NUP98 using anti-NUP98 antibody (A01301-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Caco-2 whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human K562 whole cell lysates,
Lane 4: monkey COS-7 whole cell lysates,
Lane 5: rat NRK whole cell lysates,
Lane 6: rat PC-12 whole cell lysates,
Lane 7: mouse RAW264.7 whole cell lysates,
Lane 8: mouse NIH/3T3 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-NUP98 antigen affinity purified polyclonal antibody (Catalog # A01301-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for NUP98 at approximately 98,105 kDa. The expected band size for NUP98 is at 198 kDa.

Click image to see more details

Figure 2. IF analysis of NUP98 using anti-NUP98 antibody (A01301-1).
NUP98 was detected in an immunocytochemical section of A549 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-NUP98 Antibody (A01301-1) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Click image to see more details

Figure 3. Flow Cytometry analysis of K562 cells using anti-NUP98 antibody (A01301-1).
Overlay histogram showing K562 cells stained with A01301-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-NUP98 Antibody (A01301-1, 1 μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample (Red line) was also used as a control.

Gene/Protein Information For NUP98 (Source: Uniprot.org, NCBI)

Alternative Names

ADAR2; ADIR2; GLFG-repeat containing nucleoporin; nuclear pore complex protein Nup98-Nup96; nucleoporin 98kD; nucleoporin 98kDa; NUP196; NUP96; Nup98-Nup96 NUP98 ADIR2, NUP196, NUP96, Nup98-96 nucleoporin 98 and 96 precursor nuclear pore complex protein Nup98-Nup96|nuclear pore complex protein Nup98|GLFG-repeat containing nucleoporin|NUP98/PHF23 fusion 2 protein|Nup98-Nup96|nucleoporin 96|nucleoporin 98kD|nucleoporin 98kDa

For more info on NUP98, check out the NUP98 Infographic

We have 30,000+ of these available, one for each gene! Check them out.

In this infographic, you will see the following information for NUP98: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].

Take me to the NUP98 Infographic
