RNF20 antibody (M03457-4) performs well in WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

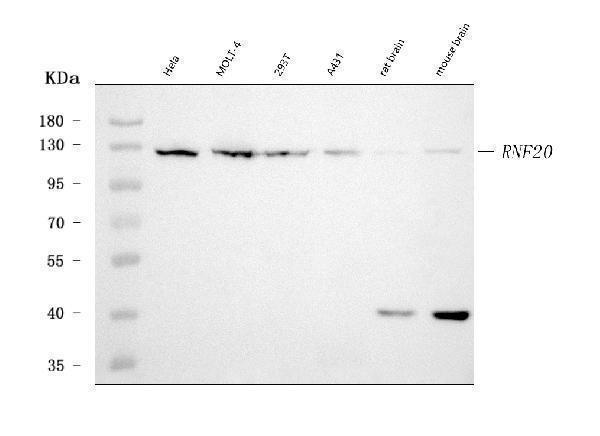

Western blot analysis of RNF20 using anti-RNF20 antibody (M03457-4).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human MOLT-4 whole cell lysates,
Lane 3: human 293T whole cell lysates,
Lane 4: human A431 whole cell lysates,
Lane 5: rat brain tissue lysates,
Lane 6: mouse brain tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-RNF20 antigen affinity purified monoclonal antibody (Catalog # M03457-4) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for RNF20 at approximately 114 kDa. The expected band size for RNF20 is at 114 kDa.
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human MOLT-4 whole cell lysates,
Lane 3: human 293T whole cell lysates,
Lane 4: human A431 whole cell lysates,
Lane 5: rat brain tissue lysates,
Lane 6: mouse brain tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-RNF20 antigen affinity purified monoclonal antibody (Catalog # M03457-4) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for RNF20 at approximately 114 kDa. The expected band size for RNF20 is at 114 kDa.
Bundle Save
Anti-RNF20 Antibody Picoband® (monoclonal, 3C6E2)
RNF20 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Mouse | WB |
Tested Applications
RNF20 antibody was positively detected by WB in:
human Hela whole cell, human MOLT-4 whole cell, human 293T whole cell, human A431 whole cell, rat brain tissue, mouse brain tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.25-0.5 µg/ml
Human, Mouse, Rat
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
Human
Tested
Rat
Tested
Mouse
Tested
Monkey
Predicted
Rabbit
Predicted
Dog
Predicted
Sheep
Predicted
Bovine
Predicted
Product Information
Product Name
Anti-RNF20 Antibody Picoband® (monoclonal, 3C6E2)
View all RNF20 Antibodies
View all RNF20 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
At -20°C for one year from date of receipt.
After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months.
Avoid repeated freezing and thawing.
Host
Mouse
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl and 0.2 mg Na2HPO4.
Clonality
Monoclonal
Clone Number
3C6E2
Isotype
IgG2b
Immunogen
E.coli-derived human RNF20 recombinant protein (Position: E123-S389).
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.
Observed Molecular Weight
114 kDa
Calculated Molecular Weight
113.7 kDa
Background of RNF20
E3 ubiquitin-protein ligase BRE1A is an enzyme that in humans is encoded by the RNF20 gene. The protein encoded by this gene shares similarity with BRE1 of S. cerevisiae. The protein encoded by this human gene is an E3 ubiquitin ligase that regulates chromosome structure by monoubiquitinating histone H2B. This protein acts as a putative tumor suppressor and positively regulates the p53 tumor suppressor as well as numerous histone H2A and H2B genes. In contrast, this protein also suppresses the expression of several protooncogenes and growth-related genes, including many genes that are induced by epidermal growth factor. This gene selectively suppresses the expression of some genes by interfering with chromatin recruitment of transcription elongation factor SII (TFIIS).
Cite This Product
Anti-RNF20 Antibody Picoband® (monoclonal, 3C6E2) (Boster Biological Technology, Pleasanton CA, USA, Catalog # M03457-4)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
100%
High Homology
Rabbit
99%
High Homology
Dog
98%
High Homology
Sheep
98%
High Homology
Cow
97%
High Homology
Mouse
97%
High Homology
Rat
97%
High Homology
Zebrafish
54%
Low homology
Drosophila
37%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for RNF20 antibody
