Anti-TSG101 Antibody Picoband™

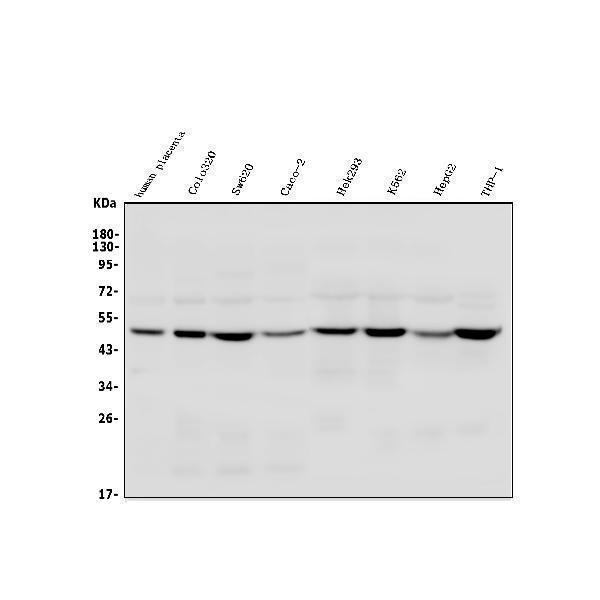

Figure 1. Western blot analysis of TSG101 using anti-TSG101 antibody (A01233-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human placenta tissue lysates,
Lane 2: human Colo320 whole cell lysates,
Lane 3: human Sw620 whole cell lysates,
Lane 4: human Caco-2 whole cell lysates,
Lane 5: human Hek293 whole cell lysates,
Lane 6: human K562 whole cell lysates,
Lane 7: human HepG2 whole cell lysates,
Lane 8: human THP-1 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TSG101 antigen affinity purified polyclonal antibody (Catalog # A01233-2) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for TSG101 at approximately 44KD. The expected band size for TSG101 is at 44KD.

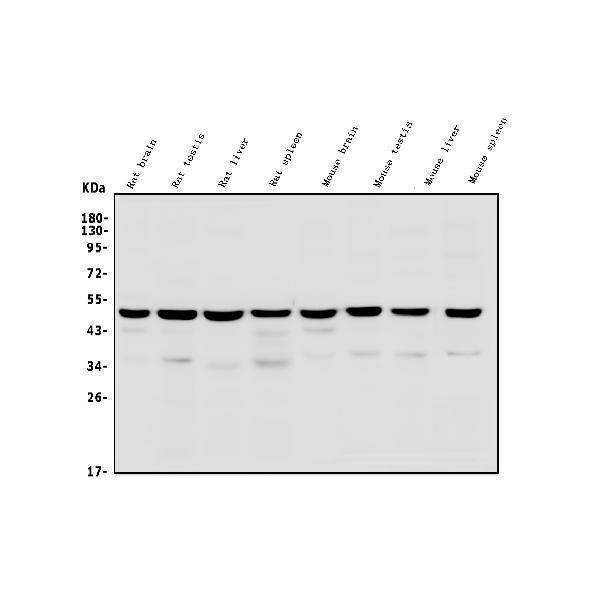

Figure 2. Western blot analysis of TSG101 using anti-TSG101 antibody (A01233-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat brain tissue lysates,
Lane 2: rat testis tissue lysates,
Lane 3: rat liver tissue lysates,
Lane 4: rat spleen tissue lysates,
Lane 5: mouse brain tissue lysates,
Lane 6: mouse testis tissue lysates,
Lane 7: mouse liver tissue lysates,
Lane 8: mouse spleen tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TSG101 antigen affinity purified polyclonal antibody (Catalog # A01233-2) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for TSG101 at approximately 44KD. The expected band size for TSG101 is at 44KD.

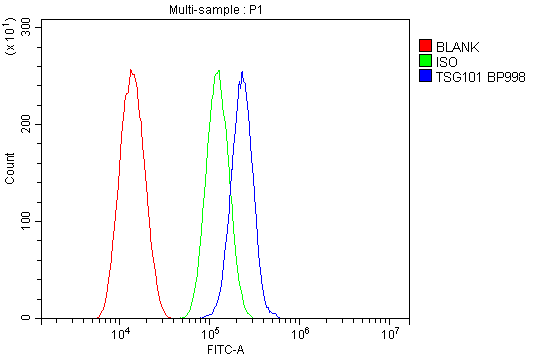

Figure 3. Flow Cytometry analysis of SiHa cells using anti-TSG101 antibody (A01233-2).
Overlay histogram showing SiHa cells stained with A01233-2 (Blue line).The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TSG101 Antibody (A01233-2, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
