ABCB11 · Western blot design guide
ABCB11 Western Blot Planning Guide
Plan an ABCB11 Western blot around the catalog-observed 146.4 kDa band, image-backed PB9414 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use

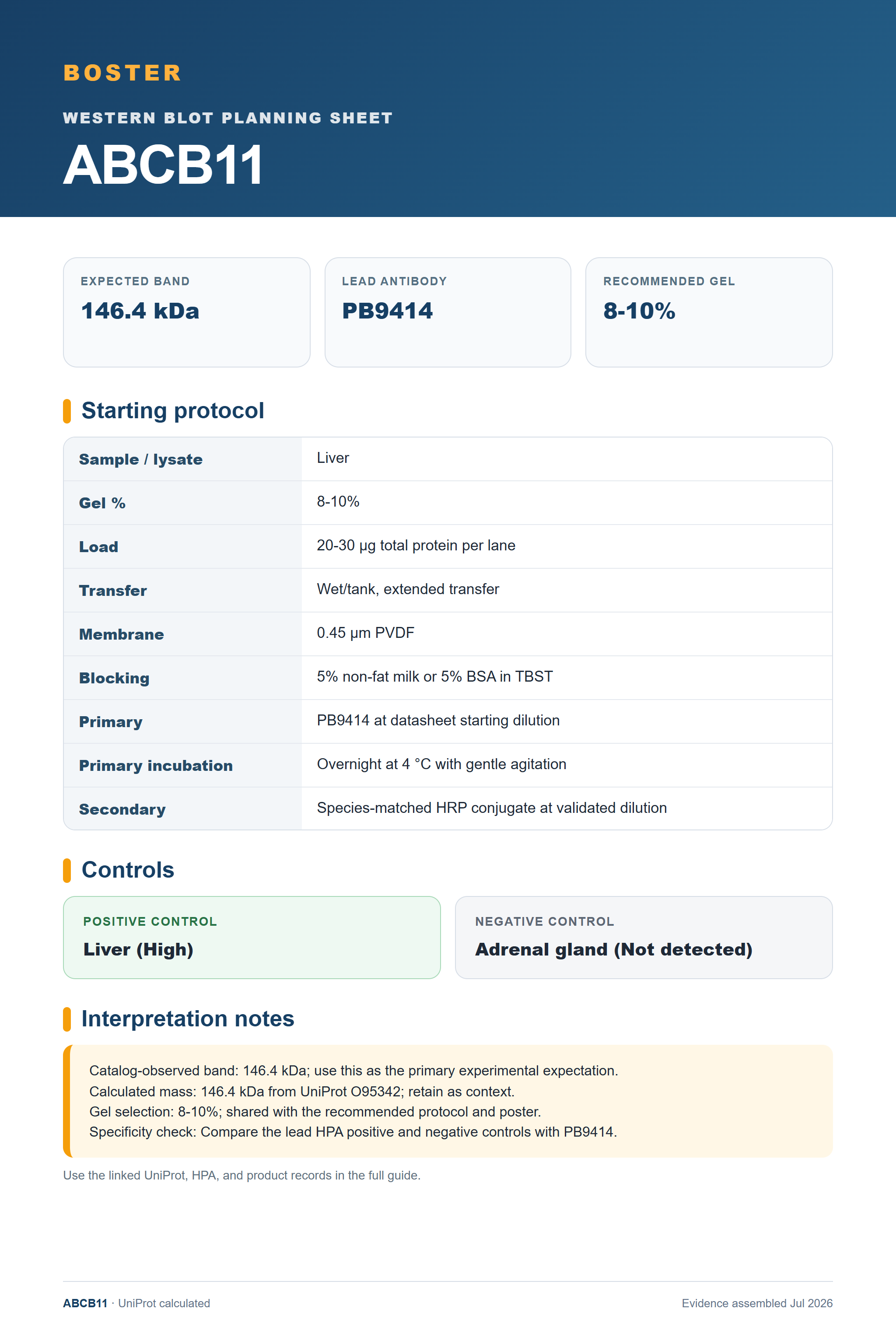

ABCB11 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 146.4 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 8-10% | |
| Positive control | Liver | |
| Negative control | Adrenal gland |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 146.4 kDa |
| ⓘ | Localization | Apical cell membrane / Recycling endosome membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated ABCB11 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Liver |
| Gel % | 8-10% |
| Load | 20-30 µg total protein per lane |
| Transfer | Wet/tank, extended transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PB9414 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected ABCB11 Western Blot Band Size?
Use the product-observed 146.4 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 146.4 kDa | Matches the authoritative product WB observation. |
| 146.4 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected ABCB11 appearancePlan around 146.4 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 146.4 kDa; use this as the primary experimental expectation. |
| Calculated mass | 146.4 kDa from UniProt O95342; retain as context. |
| Gel selection | 8-10%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PB9414. |
| Situation | Likely cause | Next action |
|---|---|---|
| 146.4 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing ABCB11 band
PB9414 · ABCB11
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for ABCB11 Western blot
🧪Use Liver as the first positive-control candidate and Adrenal gland as the HPA Not detected negative candidate.
Positive control: Liver (High)
Negative control: Adrenal gland (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for ABCB11
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Section 3
Advanced ABCB11 Western Blot Tips
Deeper troubleshooting and optimisation questions for ABCB11, answered from its protein features.
Which band should guide the blot?
Use 146.4 kDa, the observation attached to the authoritative PB9414 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 146.4 kDa expectation.
Which positive control should I start with?
Start with Liver, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Adrenal gland as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 8-10% consistently across the quick facts, protocol table, and poster.
What transfer method to use for ABCB11 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PB9414 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
ABCB11 Western Blot Reagents
Human/Mouse/Rat-reactive ABCB11 Western blot reagents with authoritative product imagery.
Real WB data
Anti-ABCB11 Antibody Picoband®
Cat # PB9414
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt O95342
- Human Protein Atlas — ABCB11
- PB9414 product record
- PMC7953918 — Glibenclamide, ATP and metformin increases the expression of human bile salt export pump ABCB11 (F1000Research, 2020)
- PMC8030117 — Cloning of human ABCB11 gene in E. coli required the removal of an intragenic Pribnow-Schaller Box before it's Insertion into genomic safe harbor AAVS1 site using CRISPR-Cas9 (F1000Research, 2020)
