COL7A1 · Western blot design guide
COL7A1 Western Blot Planning Guide
Plan a COL7A1 Western blot around the catalog-observed 295.2 kDa band, image-backed A01170-1 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
COL7A1 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 295.2 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 4-12% gradient | |
| Positive control | Testis | |
| Negative control | Appendix |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 295.2 kDa |
| ⓘ | Localization | Secreted, extracellular space, extracellular matrix, basement membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human |
Section 1

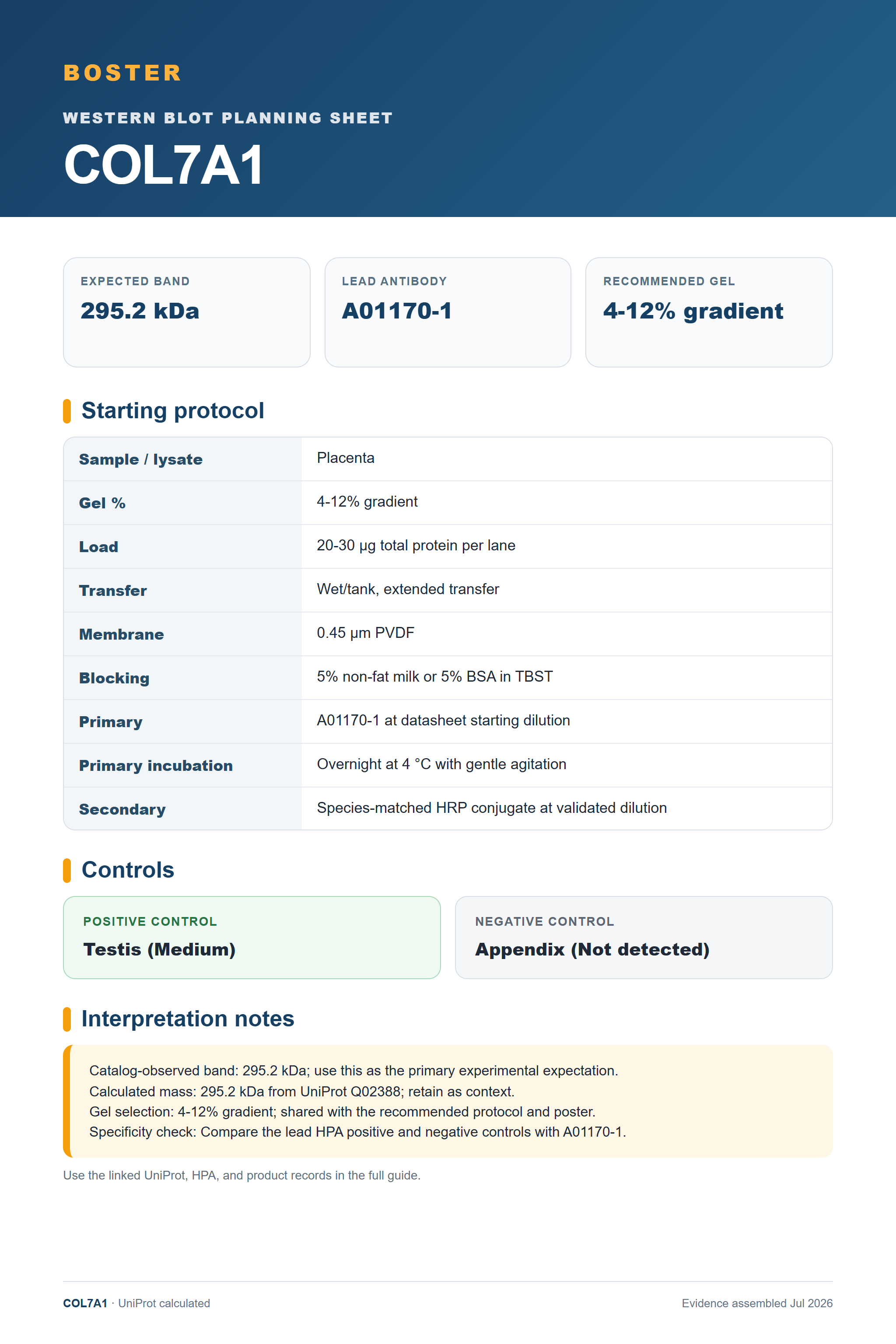

Real Curated COL7A1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Placenta |
| Gel % | 4-12% gradient |
| Load | 20-30 µg total protein per lane |
| Transfer | Wet/tank, extended transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A01170-1 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected COL7A1 Western Blot Band Size?
Use the product-observed 295.2 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 295.2 kDa | Matches the authoritative product WB observation. |
| 295.2 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected COL7A1 appearancePlan around 295.2 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 295.2 kDa; use this as the primary experimental expectation. |
| Calculated mass | 295.2 kDa from UniProt Q02388; retain as context. |
| Gel selection | 4-12% gradient; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A01170-1. |
| Situation | Likely cause | Next action |
|---|---|---|
| 295.2 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing COL7A1 band
A01170-1 · COL7A1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for COL7A1 Western blot
🧪Use Testis as the first positive-control candidate and Appendix as the HPA Not detected negative candidate.
Positive control: Testis (Medium)
Negative control: Appendix (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for COL7A1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Section 3
Advanced COL7A1 Western Blot Tips
Deeper troubleshooting and optimisation questions for COL7A1, answered from its protein features.
Which band should guide the blot?
Use 295.2 kDa, the observation attached to the authoritative A01170-1 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 295.2 kDa expectation.
Which positive control should I start with?
Start with Testis, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Appendix as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 4-12% gradient consistently across the quick facts, protocol table, and poster.
What transfer method to use for COL7A1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A01170-1 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
COL7A1 Western Blot Reagents
Human-reactive COL7A1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-Collagen VII/COL7A1 Antibody Picoband®
Cat # A01170-1
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q02388
- Human Protein Atlas — COL7A1
- A01170-1 product record
- PMC13260380 — CD14(+)CD16(+) monocyte-derived TREM2 macrophages promote lung fibrosis in systemic sclerosis-interstitial lung disease (Frontiers in immunology, 2026)
- PMC10216355 — COL7A1 Expression Improves Prognosis Prediction for Patients with Clear Cell Renal Cell Carcinoma Atop of Stage (Cancers, 2023)
- PMC10401420 — Transplantation of human induced pluripotent stem cell derived keratinocytes accelerates deep second-degree burn wound healing (World journal of stem cells, 2023)
