NDRG1 · Western blot design guide
NDRG1 Western Blot Planning Guide

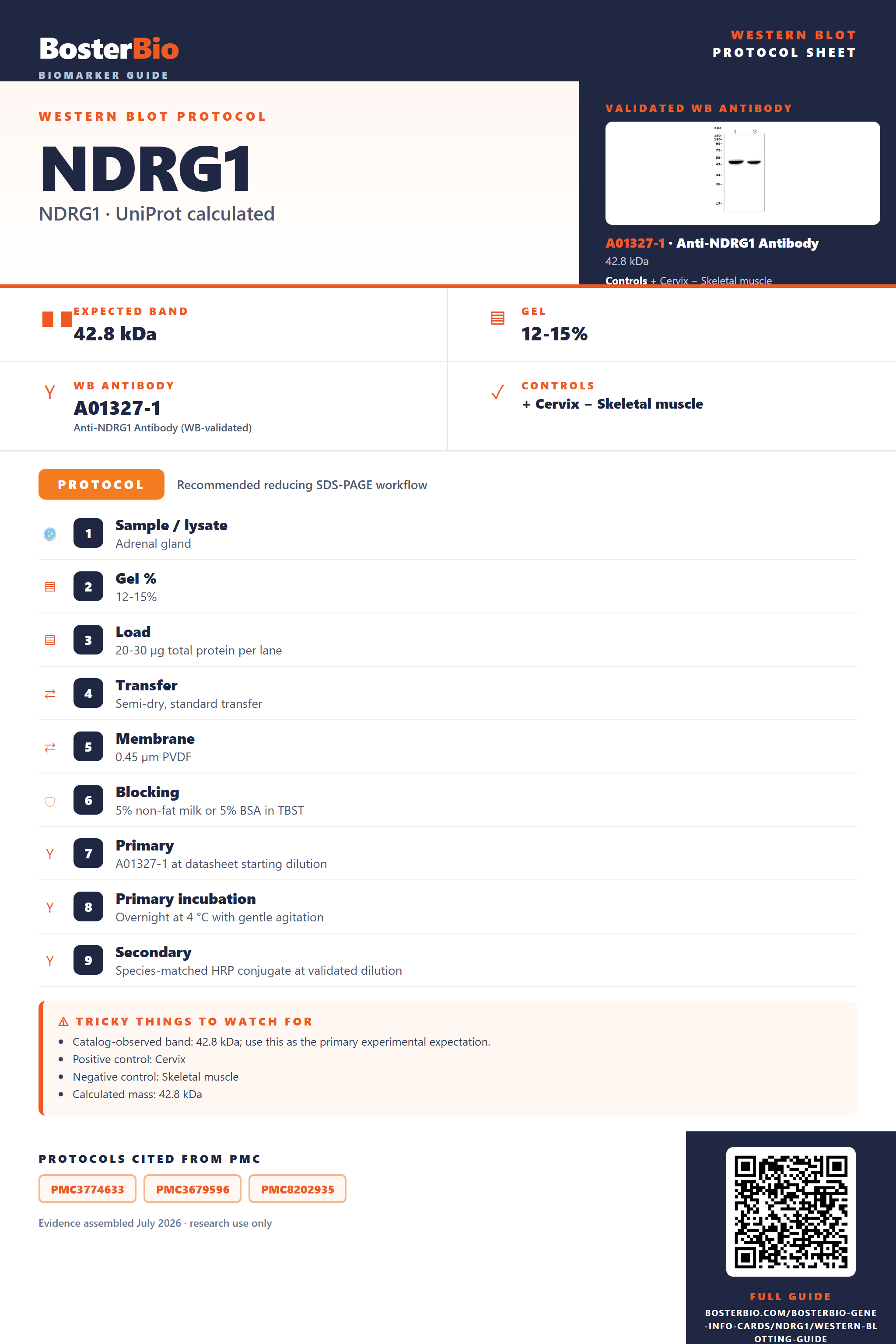

Plan a NDRG1 Western blot around the catalog-observed 42.8 kDa band, image-backed A01327-1 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
NDRG1 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 42.8 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Cervix | |
| Negative control | Skeletal muscle |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 42.8 kDa |
| ⓘ | Localization | Cytoplasm, cytosol / Cytoplasm, cytoskeleton, microtubule organizing center, centrosome |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human |
Section 1
Real Curated NDRG1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A01327-1 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected NDRG1 Western Blot Band Size?
Use the product-observed 42.8 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 42.8 kDa | Matches the authoritative product WB observation. |
| 42.8 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected NDRG1 appearancePlan around 42.8 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 42.8 kDa; use this as the primary experimental expectation. |
| Calculated mass | 42.8 kDa from UniProt Q92597; retain as context. |
| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A01327-1. |
| Situation | Likely cause | Next action |
|---|---|---|
| 42.8 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing NDRG1 band
A01327-1 · NDRG1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for NDRG1 Western blot
🧪Use Cervix as the first positive-control candidate and Skeletal muscle as the HPA Not detected negative candidate.
Positive control: Cervix (High)
Negative control: Skeletal muscle (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for NDRG1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Cervix | Reported tissue cells | High | Protein (HPA) | HPA → |
| Caudate | Reported tissue cells | High | Protein (HPA) | HPA → |
| Adrenal gland | Reported tissue cells | High | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | High | Protein (HPA) | HPA → |
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Skeletal muscle | Reported tissue cells | Not detected | Protein (HPA) | HPA → |
Section 3
Advanced NDRG1 Western Blot Tips
Deeper troubleshooting and optimisation questions for NDRG1, answered from its protein features.
Which band should guide the blot?
Use 42.8 kDa, the observation attached to the authoritative A01327-1 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 42.8 kDa expectation.
Which positive control should I start with?
Start with Cervix, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Skeletal muscle as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for NDRG1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A01327-1 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
NDRG1 Western Blot Reagents
Human-reactive NDRG1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-NDRG1 Antibody Picoband®
Cat # A01327-1
Real WB data
Anti-Protein NDRG1 NDRG1 Antibody Picoband®
Cat # PA1416
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q92597
- Human Protein Atlas — NDRG1
- A01327-1 product record
- PMC3774633 — The expression and localization of N-myc downstream-regulated gene 1 in human trophoblasts (PloS one, 2013)
- PMC3679596 — Proteolytic cleavage and truncation of NDRG1 in human prostate cancer cells, but not normal prostate epithelial cells (Bioscience reports, 2013)
- PMC8202935 — NDRG1 facilitates lytic replication of Kaposi's sarcoma-associated herpesvirus by maintaining the stability of the KSHV helicase (PLoS pathogens, 2021)
