RNF43 Western Blot Planning Guide

Plan a RNF43 Western blot around the catalog-observed 85.7 kDa band, image-backed A01694-1 evidence, HPA controls, and verified protocol records.

Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use

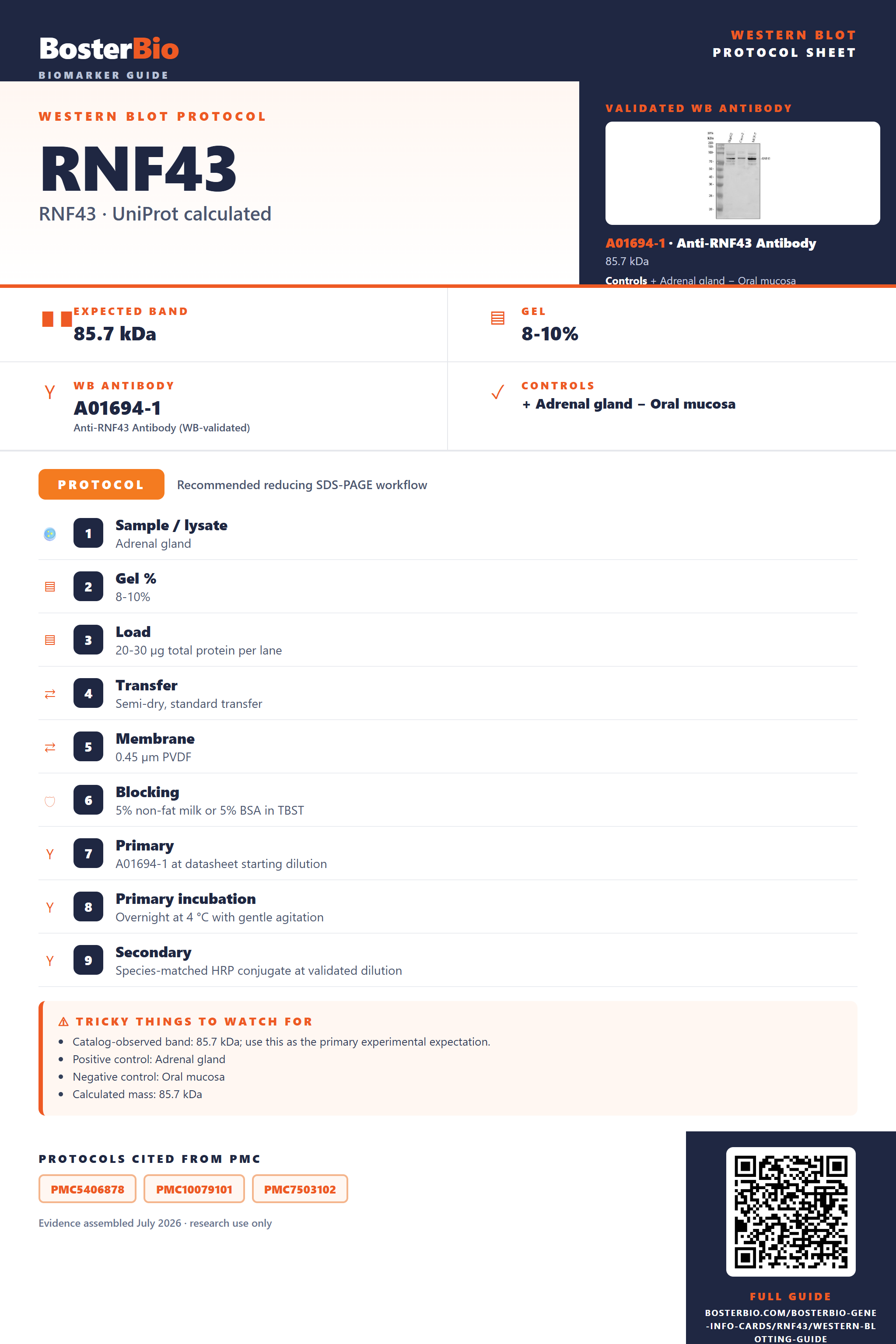

Western blot protocol sheet for RNF43: expected band 85.7 kDa, antibody A01694-1, and PMC-cited SDS-PAGE protocol steps — RNF43 Western blot protocol sheet — expected band 85.7 kDa, antibody A01694-1, controls and PMC citations. Open the full RNF43 WB guide →

Navigate to: Protocols Band Controls Antibodies

RNF43 Western Blot Experimental Design Guide

Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.

Must know before running

	Expected band	85.7 kDa
	Observed band	Not reported — verify product WB image
	Gel	8-10%
	Positive control ⓘ	Adrenal gland
	Negative control ⓘ	Oral mucosa

Important caveats

Reasons your observed band may differ from the expected size.

ⓘ	Calculated mass	85.7 kDa
ⓘ	Localization	Cell membrane / Endoplasmic reticulum membrane
ⓘ	Processing / PTM	Record-dependent
ⓘ	Reactivity	Human

Section 1

Real Curated RNF43 Western Blot Protocols

Start with the molecular-weight rule, then compare verified publication-derived conditions.

Recommended Western blot protocol parameters
Sample / lysate	Adrenal gland
Gel %	8-10%
Load	20-30 µg total protein per lane
Transfer	Semi-dry, standard transfer
Membrane	0.45 µm PVDF
Blocking	5% non-fat milk or 5% BSA in TBST
Primary	A01694-1 at datasheet starting dilution
Primary incubation	Overnight at 4 °C with gentle agitation
Secondary	Species-matched HRP conjugate at validated dilution
Wash	3 × 5 min in TBST
Detection	Chemiluminescent substrate
Exposure	Bracket exposures to avoid saturation

Section 2

What Is the Expected RNF43 Western Blot Band Size?

Use the product-observed 85.7 kDa band as the primary planning value and retain the UniProt calculated mass as context.

What am I looking at on my blot?
85.7 kDa	Matches the authoritative product WB observation.
85.7 kDa calculated	Use as UniProt context, not as a replacement observed band.
Unexpected additional signal	Do not assign identity without orthogonal positive/negative controls.

💡Expected RNF43 appearancePlan around 85.7 kDa and keep the calculated mass as supporting context.

How each factor affects band size
Catalog-observed band	85.7 kDa; use this as the primary experimental expectation.
Calculated mass	85.7 kDa from UniProt Q68DV7; retain as context.
Gel selection	8-10%; shared with the recommended protocol and poster.
Specificity check	Compare the lead HPA positive and negative controls with A01694-1.

Why is my band missing or off?
Situation	Likely cause	Next action
85.7 kDa	Matches the authoritative product WB observation.	Confirm with orthogonal controls and the linked product record.
Additional band	May reflect processing, modification, or non-specific signal.	Run a dilution series and compare positive/negative controls.
Weak signal	Target abundance or transfer may be limiting.	Verify transfer, increase positive-control abundance, and bracket exposure.

Sources: UniProt Q68DV7 Human Protein Atlas product datasheet (A01694-1)

Experiment evidence

Western blot images showing RNF43 band

A01694-1 · RNF43

← swipe / scroll for more images →

Real WB data behind the band-size expectations in this section.

Sample controls for RNF43 Western blot

🧪Use Adrenal gland as the first positive-control candidate and Oral mucosa as the HPA Not detected negative candidate.

Positive control: Adrenal gland (High)

Negative control: Oral mucosa (Not detected)

HPA protein score determines control status; other expression data is supporting context only.

HPA tissue expression evidence for RNF43

Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.

Positive expression · recommended positive controls

Tissue	Cell type	Level	Evidence	Source
Adrenal gland	Reported tissue cells	High	Protein (HPA)	HPA →
Breast	Reported tissue cells	High	Protein (HPA)	HPA →
Appendix	Reported tissue cells	High	Protein (HPA)	HPA →
Bone marrow	Reported tissue cells	High	Protein (HPA)	HPA →

Undetected expression · recommended negative controls

Tissue	Cell type	Level	Evidence	Source
Oral mucosa	Reported tissue cells	Not detected	Protein (HPA)	HPA →
Liver	Reported tissue cells	Not detected	Protein (HPA)	HPA →

Section 3

Advanced RNF43 Western Blot Tips

Deeper troubleshooting and optimisation questions for RNF43, answered from its protein features.

Which band should guide the blot?

Use 85.7 kDa, the observation attached to the authoritative A01694-1 WB record.

How should calculated mass be interpreted?

Treat the UniProt calculated mass as context; it does not replace the catalog-observed 85.7 kDa expectation.

Which positive control should I start with?

Start with Adrenal gland, the lead HPA protein-expression candidate.

Which negative control is defensible?

Use Oral mucosa as an orthogonal HPA Not detected candidate.

Which gel should I use?

Use 8-10% consistently across the quick facts, protocol table, and poster.

What transfer method to use for RNF43 Western blot?

Use the transfer method in the recommended protocol and verify transfer before blocking.

How should A01694-1 be started?

Start at the linked datasheet condition and run a three-point primary-antibody dilution test.

Which publication-derived protocols can I compare?

Compare only the supplied target-verified records: PMC5406878, PMC10079101, PMC7503102.

Boster reagents

RNF43 Western Blot Reagents

Human-reactive RNF43 Western blot reagents with authoritative product imagery.

Real WB data Western blot validation image for RNF43 using A01694-1; observed band 85.7 kDa

Anti-RNF43 Antibody Picoband®

Cat # A01694-1

View product →

Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.

Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
