VCAN · Western blot design guide
VCAN Western Blot Planning Guide
Plan a VCAN Western blot around the catalog-observed 372.8 kDa band, image-backed PB9453 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use

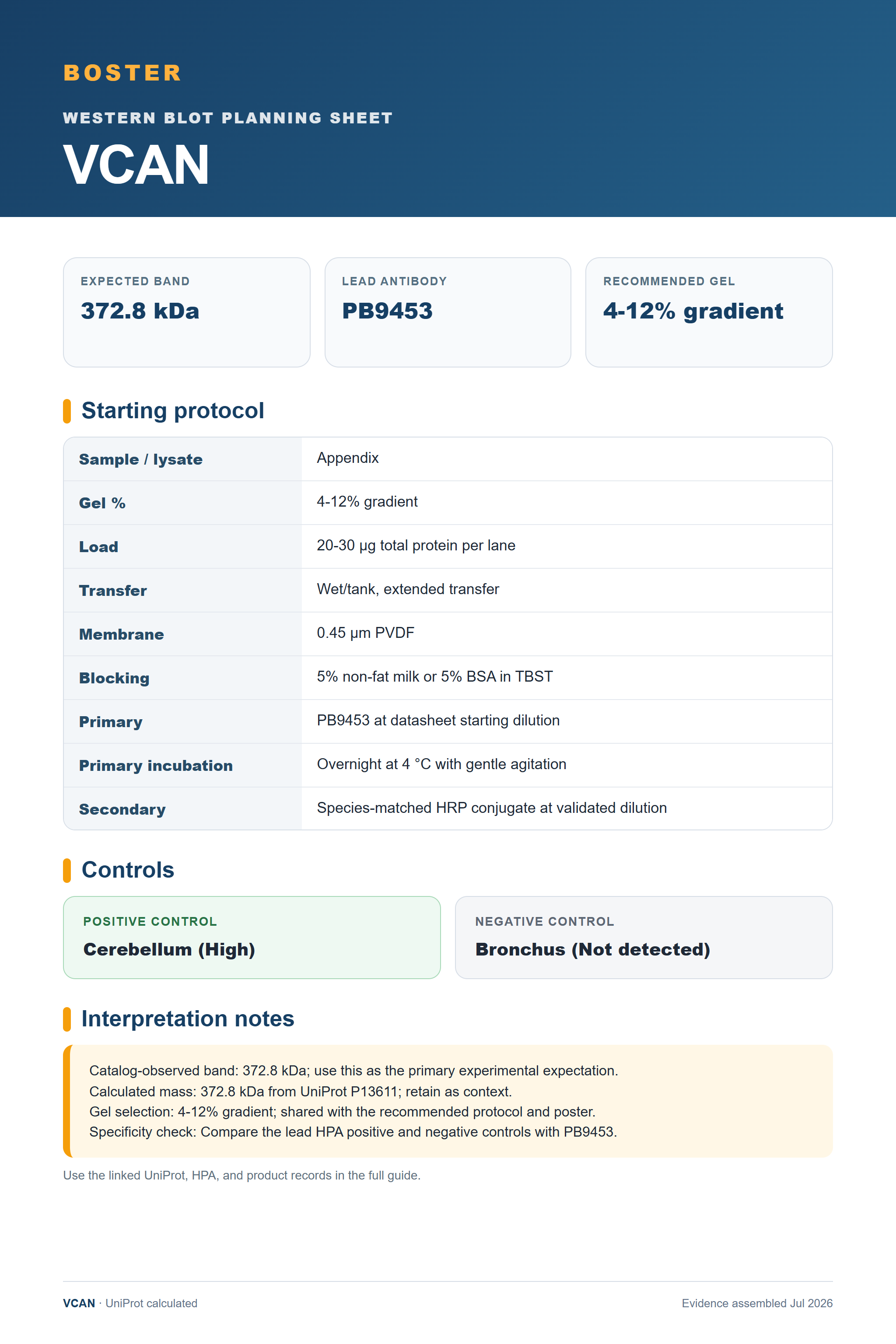

VCAN Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 372.8 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 4-12% gradient | |
| Positive control | Cerebellum | |
| Negative control | Bronchus |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 372.8 kDa |
| ⓘ | Localization | Secreted, extracellular space, extracellular matrix / Cell projection, cilium, photoreceptor outer segment |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated VCAN Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Appendix |
| Gel % | 4-12% gradient |
| Load | 20-30 µg total protein per lane |
| Transfer | Wet/tank, extended transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PB9453 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected VCAN Western Blot Band Size?
Use the product-observed 372.8 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 372.8 kDa | Matches the authoritative product WB observation. |
| 372.8 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected VCAN appearancePlan around 372.8 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 372.8 kDa; use this as the primary experimental expectation. |
| Calculated mass | 372.8 kDa from UniProt P13611; retain as context. |
| Gel selection | 4-12% gradient; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PB9453. |
| Situation | Likely cause | Next action |
|---|---|---|
| 372.8 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing VCAN band
PB9453 · VCAN
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for VCAN Western blot
🧪Use Cerebellum as the first positive-control candidate and Bronchus as the HPA Not detected negative candidate.
Positive control: Cerebellum (High)
Negative control: Bronchus (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for VCAN
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Cerebellum | Reported tissue cells | High | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | High | Protein (HPA) | HPA → |
| Endometrium | Reported tissue cells | High | Protein (HPA) | HPA → |
| Lung | Reported tissue cells | Medium | Protein (HPA) | HPA → |
Section 3
Advanced VCAN Western Blot Tips
Deeper troubleshooting and optimisation questions for VCAN, answered from its protein features.
Which band should guide the blot?
Use 372.8 kDa, the observation attached to the authoritative PB9453 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 372.8 kDa expectation.
Which positive control should I start with?
Start with Cerebellum, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Bronchus as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 4-12% gradient consistently across the quick facts, protocol table, and poster.
What transfer method to use for VCAN Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PB9453 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
VCAN Western Blot Reagents
Human/Mouse/Rat-reactive VCAN Western blot reagents with authoritative product imagery.
Real WB data
Anti-Versican/VCAN Antibody Picoband®
Cat # PB9453
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P13611
- Human Protein Atlas — VCAN
- PB9453 product record
- PMC5890926 — Versican Promotes Tumor Progression, Metastasis and Predicts Poor Prognosis in Renal Carcinoma (Molecular cancer research : MCR, 2017)
- PMC6856892 — Up-regulation of EMT-related gene VCAN by NPM1 mutant-driven TGF-β/cPML signalling promotes leukemia cell invasion (Journal of Cancer, 2019)
- PMC6495079 — Deletion of miR-126a Promotes Hepatic Aging and Inflammation in a Mouse Model of Cholestasis (Molecular therapy. Nucleic acids, 2019)
