PLEC · Western blot design guide
PLEC Western Blot Planning Guide
Plan a PLEC Western blot around the catalog-observed 531.8 kDa band, image-backed PB9430 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
PLEC Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 531.8 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 4-12% gradient | |
| Positive control | Cervix | |
| Negative control | Target knockdown/knockout |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 531.8 kDa |
| ⓘ | Localization | Cytoplasm, cytoskeleton / Cell junction, hemidesmosome |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated PLEC Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.

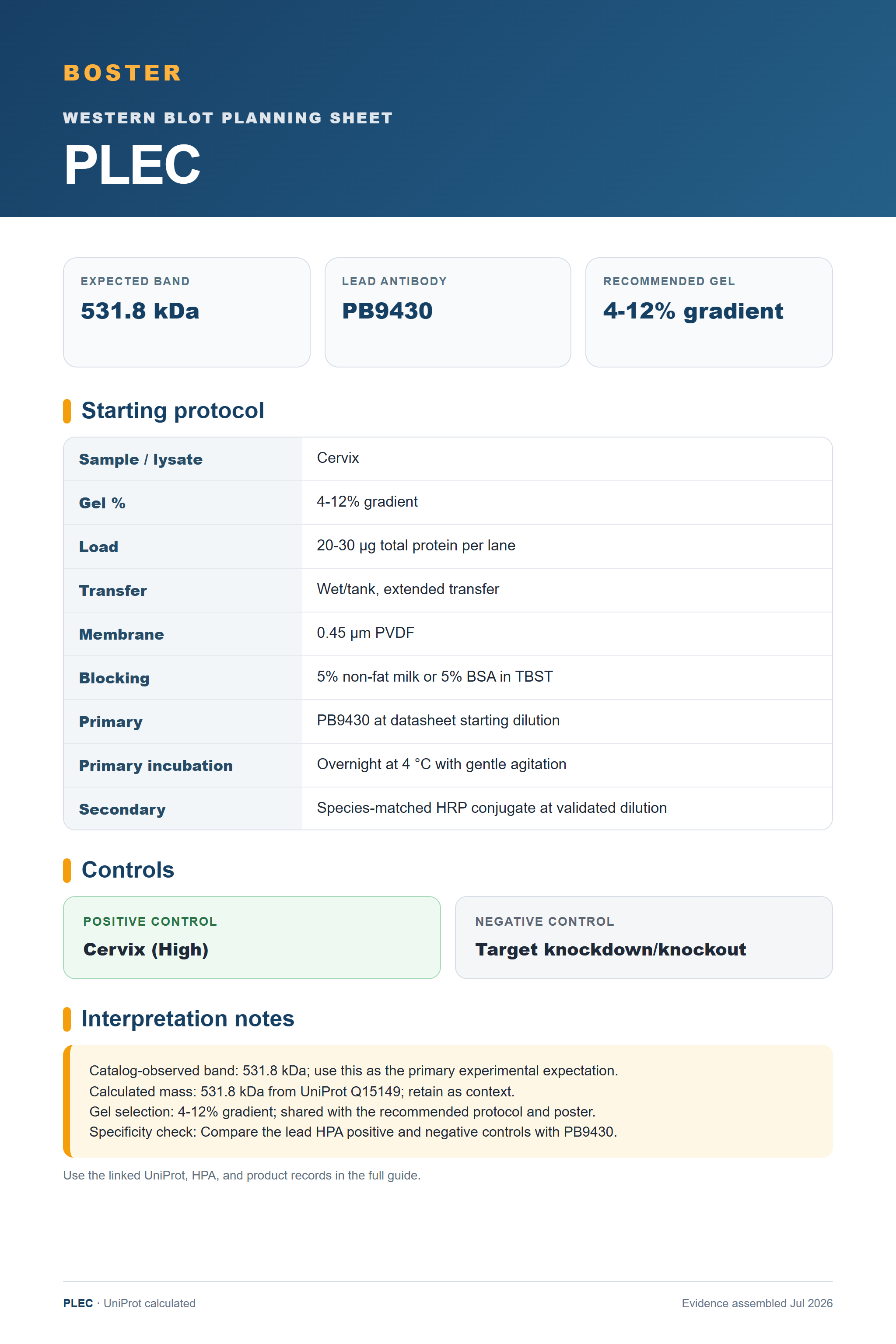

| Sample / lysate | Cervix |
| Gel % | 4-12% gradient |
| Load | 20-30 µg total protein per lane |
| Transfer | Wet/tank, extended transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PB9430 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected PLEC Western Blot Band Size?
Use the product-observed 531.8 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 531.8 kDa | Matches the authoritative product WB observation. |
| 531.8 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected PLEC appearancePlan around 531.8 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 531.8 kDa; use this as the primary experimental expectation. |
| Calculated mass | 531.8 kDa from UniProt Q15149; retain as context. |
| Gel selection | 4-12% gradient; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PB9430. |
| Situation | Likely cause | Next action |
|---|---|---|
| 531.8 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing PLEC band
PB9430 · PLEC
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for PLEC Western blot
🧪Use Cervix as the first positive-control candidate; no defensible HPA Not detected tissue was available, so use a target knockdown/knockout negative control.
Positive control: Cervix (High)
Negative control: Target knockdown/knockout
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for PLEC
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Cervix | Reported tissue cells | High | Protein (HPA) | HPA → |
| Colon | Reported tissue cells | High | Protein (HPA) | HPA → |
| Gallbladder | Reported tissue cells | High | Protein (HPA) | HPA → |
| Urinary bladder | Reported tissue cells | High | Protein (HPA) | HPA → |
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced PLEC Western Blot Tips
Deeper troubleshooting and optimisation questions for PLEC, answered from its protein features.
Which band should guide the blot?
Use 531.8 kDa, the observation attached to the authoritative PB9430 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 531.8 kDa expectation.
Which positive control should I start with?
Start with Cervix, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use a target knockdown/knockout control when no HPA Not detected tissue is available.
Which gel should I use?
Use 4-12% gradient consistently across the quick facts, protocol table, and poster.
What transfer method to use for PLEC Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PB9430 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
PLEC Western Blot Reagents
Human/Mouse/Rat-reactive PLEC Western blot reagents with authoritative product imagery.
Real WB data
Anti-Plectin Antibody Picoband®
Cat # PB9430
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q15149
- Human Protein Atlas — PLEC
- PB9430 product record
- PMC6567723 — Putative biomarkers of malignant transformation of sinonasal inverted papilloma into squamous cell carcinoma (The Journal of international medical research, 2019)
- PMC12710123 — A disulfidptosis-related gene signature predicts prognosis and immune-metabolic landscape in multiple myeloma (British journal of haematology, 2025)
- PMC7594932 — Multi-tissue epigenetic analysis of the osteoarthritis susceptibility locus mapping to the plectin gene PLEC (Osteoarthritis and cartilage, 2020)
