SLC2A1 · Western blot design guide
SLC2A1 Western Blot Planning Guide
Plan a SLC2A1 Western blot around the catalog-observed 54.1 kDa band, image-backed M00163-1 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
SLC2A1 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 54.1 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Skin | |
| Negative control | Appendix |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 54.1 kDa |
| ⓘ | Localization | Cell membrane / Melanosome |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated SLC2A1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Placenta |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | M00163-1 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected SLC2A1 Western Blot Band Size?
Use the product-observed 54.1 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 54.1 kDa | Matches the authoritative product WB observation. |
| 54.1 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected SLC2A1 appearancePlan around 54.1 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 54.1 kDa; use this as the primary experimental expectation. |
| Calculated mass | 54.1 kDa from UniProt P11166; retain as context. |

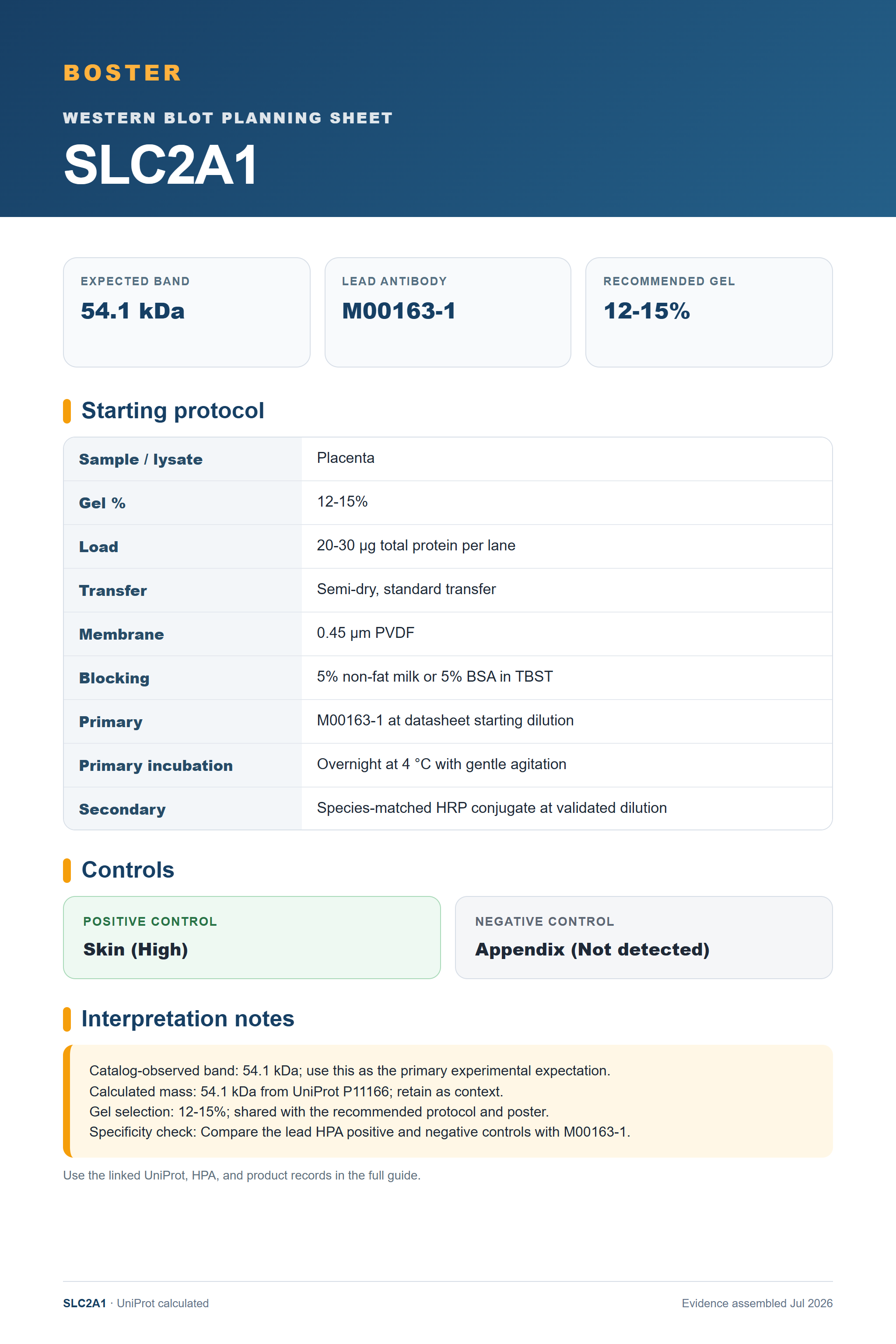

| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with M00163-1. |
| Situation | Likely cause | Next action |
|---|---|---|
| 54.1 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing SLC2A1 band
M00163-1 · SLC2A1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for SLC2A1 Western blot
🧪Use Skin as the first positive-control candidate and Appendix as the HPA Not detected negative candidate.
Positive control: Skin (High)
Negative control: Appendix (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for SLC2A1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Skin | Reported tissue cells | High | Protein (HPA) | HPA → |
| Placenta | Reported tissue cells | High | Protein (HPA) | HPA → |
| Kidney | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Tonsil | Reported tissue cells | Low | Protein (HPA) | HPA → |
Section 3
Advanced SLC2A1 Western Blot Tips
Deeper troubleshooting and optimisation questions for SLC2A1, answered from its protein features.
Which band should guide the blot?
Use 54.1 kDa, the observation attached to the authoritative M00163-1 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 54.1 kDa expectation.
Which positive control should I start with?
Start with Skin, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Appendix as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for SLC2A1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should M00163-1 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
SLC2A1 Western Blot Reagents
Human/Mouse/Rat-reactive SLC2A1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-SLC2A1 Antibody Picoband® (monoclonal, 10C10)
Cat # M00163-1
Real WB data
Anti-Glucose Transporter GLUT1/SLC2A1 Antibody Picoband®
Cat # PB9435
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P11166
- Human Protein Atlas — SLC2A1
- M00163-1 product record
- PMC10317017 — miR-455-3p ameliorates pancreatic acinar cell injury by targeting Slc2a1 (PeerJ, 2023)
- PMC5463086 — miR-148b inhibits glycolysis in gastric cancer through targeting SLC2A1 (Cancer medicine, 2017)
- PMC11006501 — Identification and validation of ferroptosis-related gene SLC2A1 as a novel prognostic biomarker in AKI (Aging, 2024)
