Ccl20 antibody (A00748-2) performs well in WB, ELISA (Cap) and shows reactivity with Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:
Western blot analysis of MIP-3 Alpha/CCL20 using anti-MIP-3 Alpha/CCL20 antibody (A00748-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat testis tissue lysates,
Lane 2: mouse testis tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-MIP-3 Alpha/CCL20 antigen affinity purified polyclonal antibody (Catalog # A00748-2) at 0.5 ug/mL overnight at 4 then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for MIP-3 Alpha/CCL20 at approximately 14KD. The expected band size for MIP-3 Alpha/CCL20 is at 14KD.
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat testis tissue lysates,
Lane 2: mouse testis tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-MIP-3 Alpha/CCL20 antigen affinity purified polyclonal antibody (Catalog # A00748-2) at 0.5 ug/mL overnight at 4 then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for MIP-3 Alpha/CCL20 at approximately 14KD. The expected band size for MIP-3 Alpha/CCL20 is at 14KD.
Bundle Save
Anti-MIP-3 Alpha/CCL20 Antibody Picoband®
Ccl20 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Mouse, Rat | Rabbit | WB, ELISA (Cap) |
Tested Applications
Ccl20 antibody was positively detected by WB in:
rat testis tissue, mouse testis tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.5μg/ml

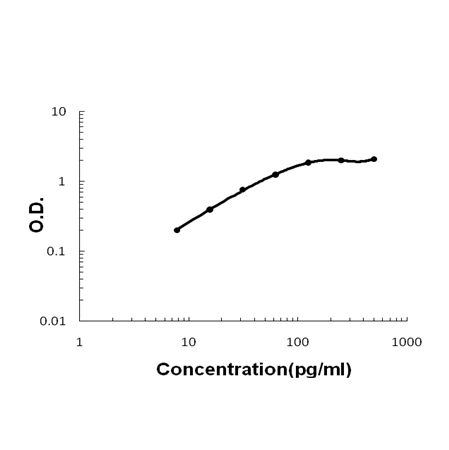

ELISA (Cap)
1-5μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Product Information
Product Name
Anti-MIP-3 Alpha/CCL20 Antibody Picoband®
View all CCL20 Antibodies
View all CCL20 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E. coli-derived mouse MIP-3 Alpha/CCL20 recombinant protein (Position: A28-M97).
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
14 kDa
Calculated Molecular Weight
10.8 kDa
Background of Ccl20
Macrophage Inflammatory Protein 3alpha (MIP3alpha), also called Chemokine, cc motif, ligand 20 (CCL20). The MIP-3alpha/CCL20 gene was cloned and sequenced, revealing a four exon, three intron structure, and was localized by FISH analysis to 2q35-q36. MIP3alpha is predominantly expressed in lymph nodes, appendix, PBL, fetal liver, fetal lung and several cell lines. MIP3alpha/CCL20 and its receptor CCR6 are markedly up-regulated in psoriasis, and they may play a role in the recruitment of T cells to lesional psoriatic skin. And Alanine MIP-3alpha and Serine MIP-3alpha, the two forms of MIP3alpha, that differ by one amino acid at the predicted signal peptide cleavage site. Both of them were chemically synthesized and tested for biological activity. And both flu antigen plus IL-2-activated CD4 (+) and CD8 (+) T lymphoblasts and cord blood-derived dendritic cells responded to Ser and Ala MIP-3alpha.
Cite This Product
Anti-MIP-3 Alpha/CCL20 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A00748-2)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Mouse
100%
High Homology
Rat
70%
Moderate Homology
Rabbit
69%
Low homology
Human
67%
Low homology
Dog
67%
Low homology
Monkey
60%
Low homology
Cow
59%
Low homology
Sheep
59%
Low homology
Zebrafish
43%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for Ccl20 antibody
Review
Have you used Anti-MIP-3 Alpha/CCL20 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-MIP-3 Alpha/CCL20 Antibody Picoband® performs excellently in relevant applications for WB, ELISA (Cap). If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A00748-2
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
