PGR · Western blot design guide

PGR Western Blot Planning Guide

Plan a PGR Western blot around the catalog-observed 99 kDa band, image-backed PA1413 evidence, HPA controls, and verified protocol records.

Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use

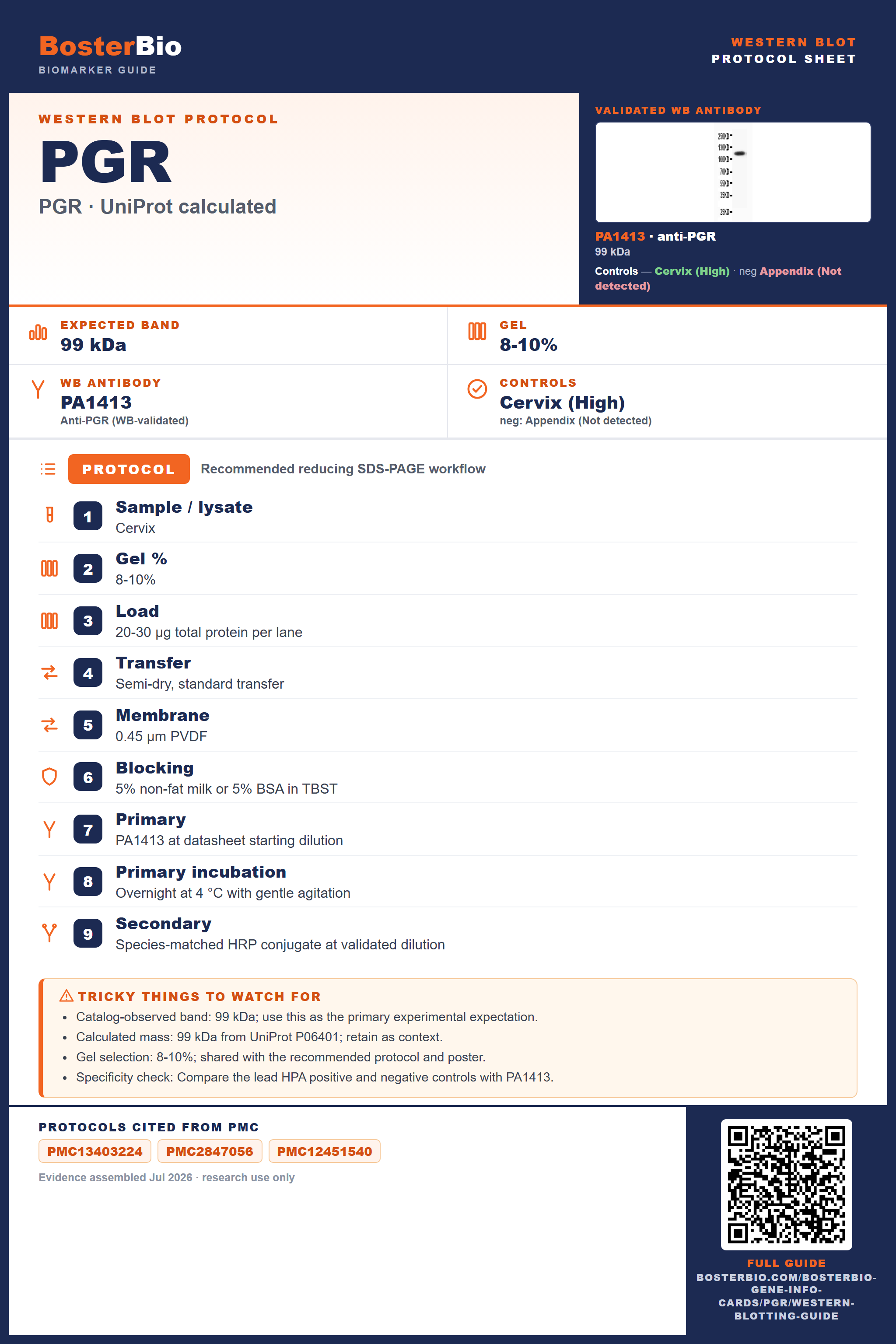

Western blot protocol sheet for PGR (PGR): expected band 99 kDa, antibody PA1413, and PMC-cited SDS-PAGE protocol steps — PGR Western blot protocol sheet — expected band 99 kDa, antibody PA1413, controls and PMC citations. Open the full PGR WB guide →

Navigate to: Protocols Band Controls Antibodies

PGR Western Blot Experimental Design Guide

Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.

Must know before running

	Expected band	99 kDa
	Observed band	Not reported — verify product WB image
	Gel	8-10%
	Positive control ⓘ	Cervix
	Negative control ⓘ	Appendix

Important caveats

Reasons your observed band may differ from the expected size.

ⓘ	Calculated mass	99 kDa
ⓘ	Localization	Nucleus / Cytoplasm
ⓘ	Processing / PTM	Record-dependent
ⓘ	Reactivity	Human

Section 1

Real Curated PGR Western Blot Protocols

Start with the molecular-weight rule, then compare verified publication-derived conditions.

Recommended Western blot protocol parameters
Sample / lysate	Cervix
Gel %	8-10%
Load	20-30 µg total protein per lane
Transfer	Semi-dry, standard transfer
Membrane	0.45 µm PVDF
Blocking	5% non-fat milk or 5% BSA in TBST
Primary	PA1413 at datasheet starting dilution
Primary incubation	Overnight at 4 °C with gentle agitation
Secondary	Species-matched HRP conjugate at validated dilution
Wash	3 × 5 min in TBST
Detection	Chemiluminescent substrate
Exposure	Bracket exposures to avoid saturation

Section 2

What Is the Expected PGR Western Blot Band Size?

Use the product-observed 99 kDa band as the primary planning value and retain the UniProt calculated mass as context.

What am I looking at on my blot?
99 kDa	Matches the authoritative product WB observation.
99 kDa calculated	Use as UniProt context, not as a replacement observed band.
Unexpected additional signal	Do not assign identity without orthogonal positive/negative controls.

💡Expected PGR appearancePlan around 99 kDa and keep the calculated mass as supporting context.

How each factor affects band size
Catalog-observed band	99 kDa; use this as the primary experimental expectation.
Calculated mass	99 kDa from UniProt P06401; retain as context.
Gel selection	8-10%; shared with the recommended protocol and poster.
Specificity check	Compare the lead HPA positive and negative controls with PA1413.

Why is my band missing or off?
Situation	Likely cause	Next action
99 kDa	Matches the authoritative product WB observation.	Confirm with orthogonal controls and the linked product record.
Additional band	May reflect processing, modification, or non-specific signal.	Run a dilution series and compare positive/negative controls.
Weak signal	Target abundance or transfer may be limiting.	Verify transfer, increase positive-control abundance, and bracket exposure.

Sources: UniProt P06401 Human Protein Atlas product datasheet (PA1413)

Experiment evidence

Western blot images showing PGR band

PA1413 · PGR

← swipe / scroll for more images →

Real WB data behind the band-size expectations in this section.

Sample controls for PGR Western blot

🧪Use Cervix as the first positive-control candidate and Appendix as the HPA Not detected negative candidate.

Positive control: Cervix (High)

Negative control: Appendix (Not detected)

HPA protein score determines control status; other expression data is supporting context only.

HPA tissue expression evidence for PGR

Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.

Positive expression · recommended positive controls

Tissue	Cell type	Level	Evidence	Source
Cervix	Reported tissue cells	High	Protein (HPA)	HPA →
Fallopian tube	Reported tissue cells	High	Protein (HPA)	HPA →
Endometrium	Reported tissue cells	High	Protein (HPA)	HPA →
Smooth muscle	Reported tissue cells	High	Protein (HPA)	HPA →

Undetected expression · recommended negative controls

Tissue	Cell type	Level	Evidence	Source
Appendix	Reported tissue cells	Not detected	Protein (HPA)	HPA →
Bone marrow	Reported tissue cells	Not detected	Protein (HPA)	HPA →

Section 3

Advanced PGR Western Blot Tips

Deeper troubleshooting and optimisation questions for PGR, answered from its protein features.

Which band should guide the blot?

Use 99 kDa, the observation attached to the authoritative PA1413 WB record.

How should calculated mass be interpreted?

Treat the UniProt calculated mass as context; it does not replace the catalog-observed 99 kDa expectation.

Which positive control should I start with?

Start with Cervix, the lead HPA protein-expression candidate.

Which negative control is defensible?

Use Appendix as an orthogonal HPA Not detected candidate.

Which gel should I use?

Use 8-10% consistently across the quick facts, protocol table, and poster.

What transfer method to use for PGR Western blot?

Use the transfer method in the recommended protocol and verify transfer before blocking.

How should PA1413 be started?

Start at the linked datasheet condition and run a three-point primary-antibody dilution test.

Which publication-derived protocols can I compare?

Compare only the supplied target-verified records: PMC13403224, PMC2847056, PMC12451540.

Boster reagents

PGR Western Blot Reagents

Human-reactive PGR Western blot reagents with authoritative product imagery.

Real WB data Western blot validation image for PGR using PA1413; observed band 99 kDa

Anti-Progesterone Receptor/PGR Antibody Picoband®

Cat # PA1413

View product →

Real WB data Western blot validation image for PGR using PB9009; observed band 99 kDa
